kubion

WALL SUPPLY UNIT
NORMAL CARE

Downloads

Elegantly concealed values

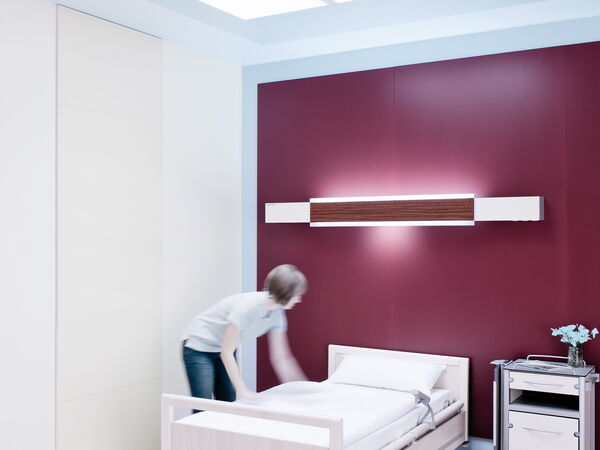

The modular wall supply system complies with the high requirements for modern patient supply units. The kubion is equipped with a host of functions, is easy to clean, has a wide diversity of applications and simply makes the working day easier for care personnel. The linear design of the basis module can be individually and stylishly adapted with diverse colours and wooden decor and can also be expanded with various decor modules. This means an attractive and custom-designed wall supply system can be created very quickly, making everyday care significantly easier thanks to many intelligent details.

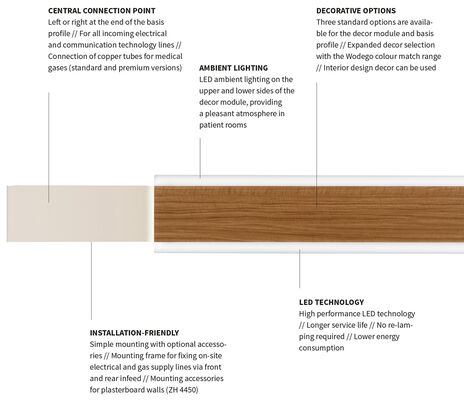

01 Highlights

02 Features

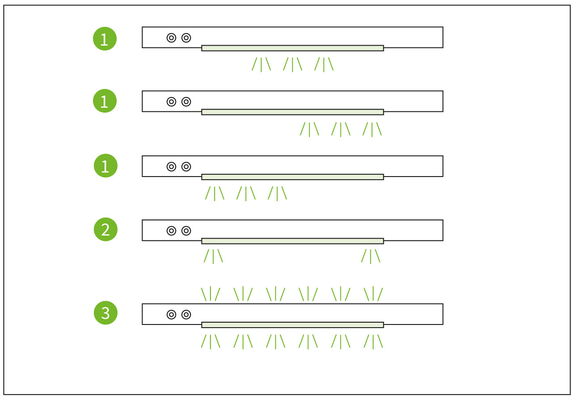

Premium LED reading light module
(1) Reading light for variable positioning of the bed and bedside table // Electronically adjustable, adaptable to the bed position
(2) Integrated orientation lighting
(3) Integrated push button to activate examination light

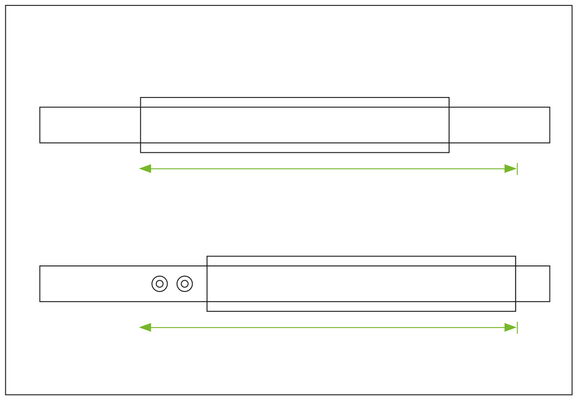

03 Slidable decor module

Cosy atmosphere by covering a maximum of two gas outlets with the slidable decor module

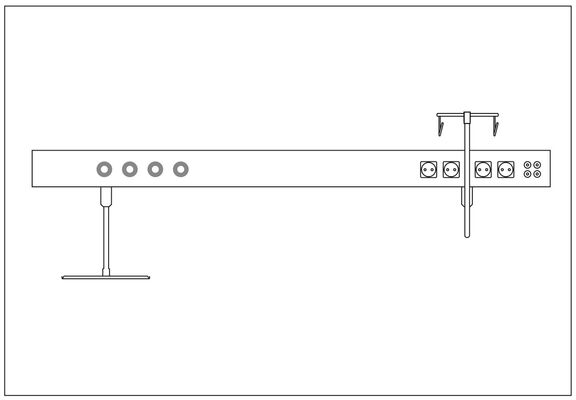

04 Can be upgraded to intermediate care

Installation of socket outlets and communication components into the front profile // Optional accessories e.g. infusion bottle holder and medical rail

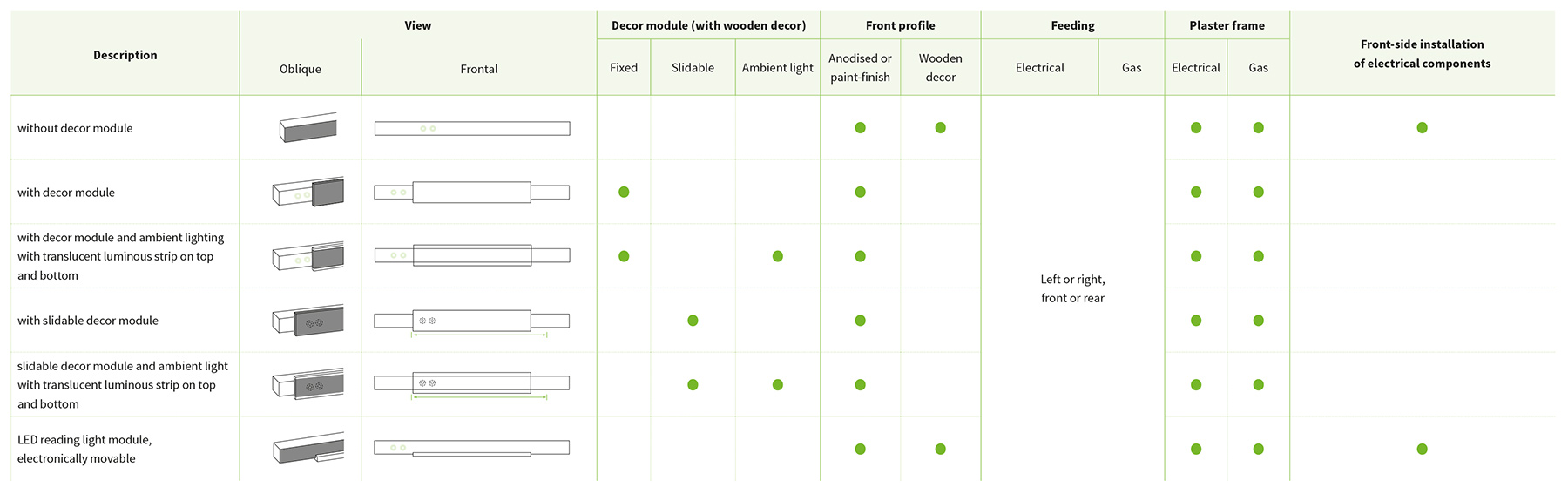

Product versions

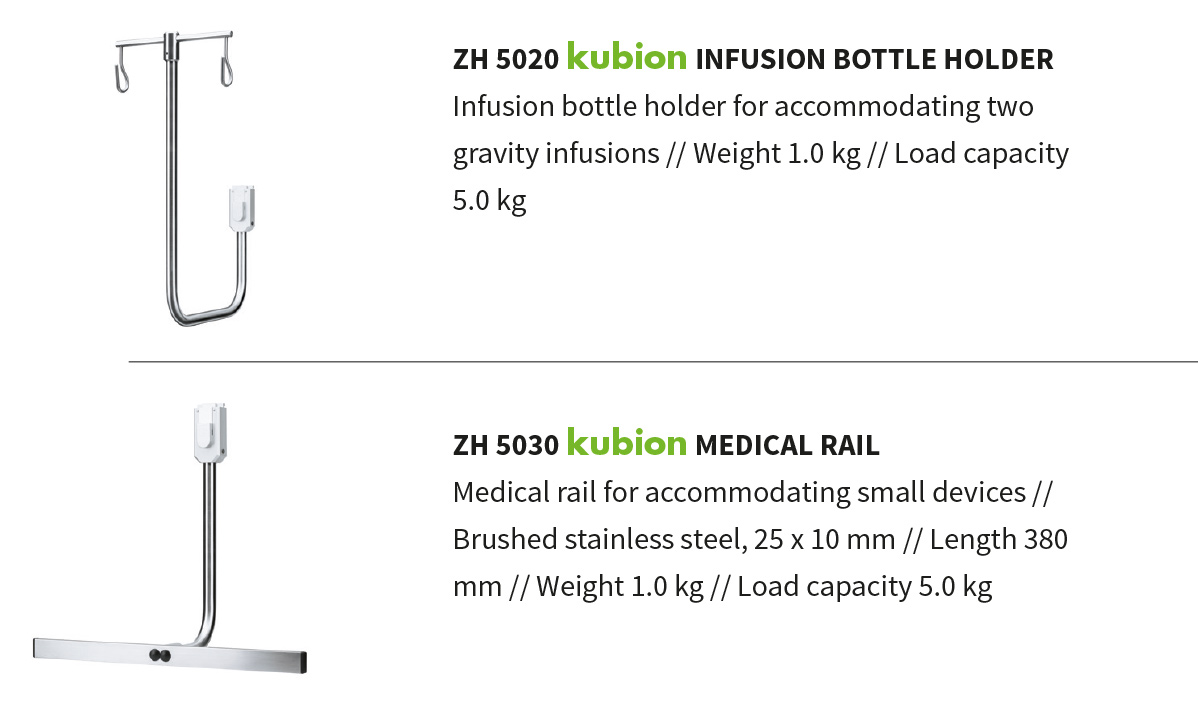

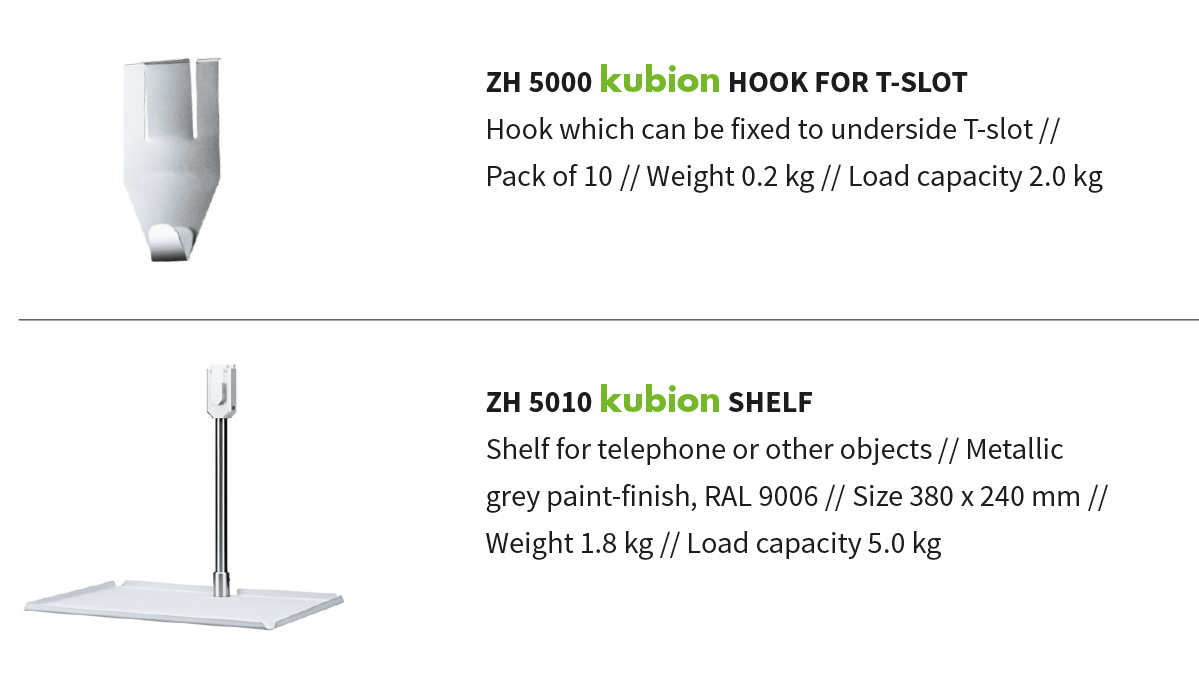

Accessories

Gestaltungsspielraum für individuelle Raumkonzepte

Unsere Versorgungseinheiten lassen sich nicht nur technisch, sondern auch gestalterisch in Ihre Raumplanung integrieren. Durch eine Auswahl an hochwertigen Holzdekoren und verschiedenen RAL-Farbtönen für die Bestückungsbleche passen sich unsere Produkte harmonisch an bestehende Farb- und Designkonzepte an – oder setzen gezielt gestalterische Akzente.

Farben und Materialien wirken sich nachweislich auf Wohlbefinden, Orientierung und Atmosphäre aus – im Patientenzimmer ebenso wie im OP oder Funktionsbereich. Mit einer sorgfältigen Gestaltung schaffen Sie nicht nur eine angenehme Umgebung für Ihre Patienten, sondern auch ein motivierendes Arbeitsumfeld für das medizinische Personal.

Eine Auswahl möglicher Dekore sehen Sie hier – Farbkarten oder Muster senden wir Ihnen gerne auf Anfrage zu. Sprechen Sie uns an!

Decors

HOT OFF THE PRESS, DIGITAL ONLY – OUR BROCHURES

kubion – Elegantly concealed values

Gallery

Assembly, cleaning and maintenance

01. Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

02. Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

03. Maintenance & repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

04. Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.

Your contact

Siegfried Demjanenko

Project Manager

Tel.: +49(0)2602/9449-52
Fax: +49(0)2602/9449-11
Mob: +49(0)176/10089103
E-Mail:

„As a project manager, I develop customized, innovative supply units that reliably meet your healthcare needs.“
