IV 1054 UP & IVV 1054 UP

WALL SUPPLY UNIT
NORMAL CARE, OPERATING ROOMS

Downloads

Wall-mounted for more space

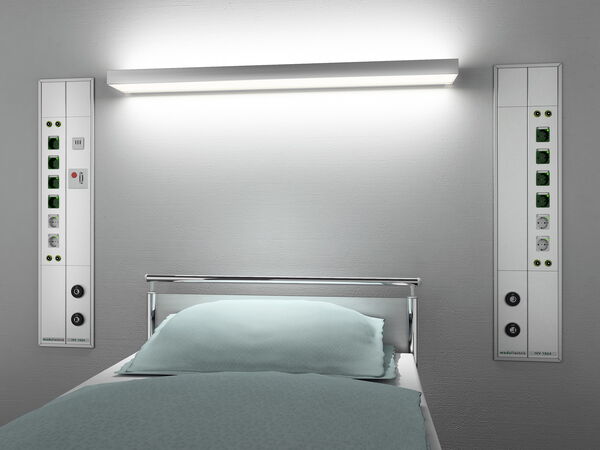

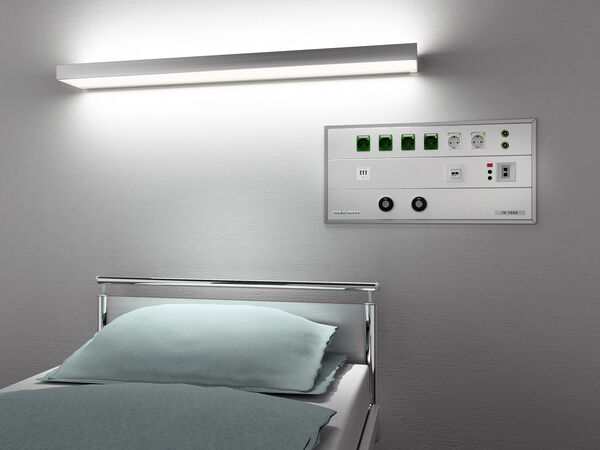

New hospital buildings in particular enable the planning freedom to provide wall flush-mounted medical supply systems. However, the benefits of IV 1054-UP are not only demonstrated in its small footprint and in its elegant aesthetics of this only 90 mm deep flush-mounted modules. Depending on requirements and room design it can also be implemented in both horizontal and vertical variants in many different sizes, with different media connections and still have the same flexibility as all modul  technik products.

Whether medical gases, electricity, data and communications technologies or single, double, triple or four channel versions – everything is possible. And everything is very transparent, easily accessible and very easy to clean. This achieved through the option of anodised or electrostatically powder-coated wall-mounted surfaces in the colour of your choice.

Our accessories programme also offers several appropriate room lighting solutions. We will be pleased to find the right lighting solution for you.

And what‘s more, the system can also be considered for conversion or refurbishment projects since the particularly flat design only requires an approx. 100 mm thick lightweight front-wall structure, behind which are concealed the cables and connections to the available media supply units. We will be pleased to advise you.

Key Details

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Media current feed: Rear
Number of media channels: One to three

HOT OFF THE PRESS, DIGITAL ONLY - OUR BROCHURES

IV 1054 UP & IVV 1054 UP – Wall-mounted for more space

Gallery

Assembly, cleaning and maintenance

01. Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

02. Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

03. Maintenance & repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

04. Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.

Your contact

Siegfried Demjanenko

Project Manager

Tel.: +49(0)2602/9449-52
Fax: +49(0)2602/9449-11
Mob: +49(0)176/10089103
E-Mail:

„As a project manager, I develop customized, innovative supply units that reliably meet your healthcare needs.“
