Comfort in 1001 colours
Light is the easiest way of creating comfort and atmosphere in a room. Seen from this perspective, ambient light is a true all-rounder, since the integrated LED light concept constantly creates new, luminous colour moods, which are freely selectable or which change based on a specified program cycle.
But of course it is still much more than an atmospheric design object.

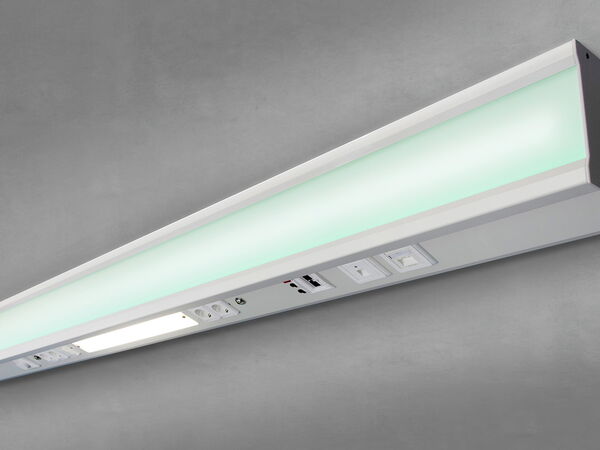

Equipped with all the media connections according to your specifications, it is the central access point for patient care. Since the installation components for the communications, electric and data technologies are positioned on the underside, they are only visible at second glance, yet are accessible at all times.
In addition to the LED light on the front, this supply unit can also be fitted with various reading light and ambient light options.
Key Details
Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20
Lighting technology
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection type: Plug connection
Connection cross-section: 1.5mm² max.
Protection type: IP 20
Reading light (LED): Output ≙ 23 W
Reading light (T5 fluorescent tubes): Output ≙ 24 W / 2 x 24 W
Indirect lighting (LED): Output ≙ 53 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 39 W
Night light (LED): Output ≙ 4.3 W
Ambient lighting (LED-RGB): Outpu

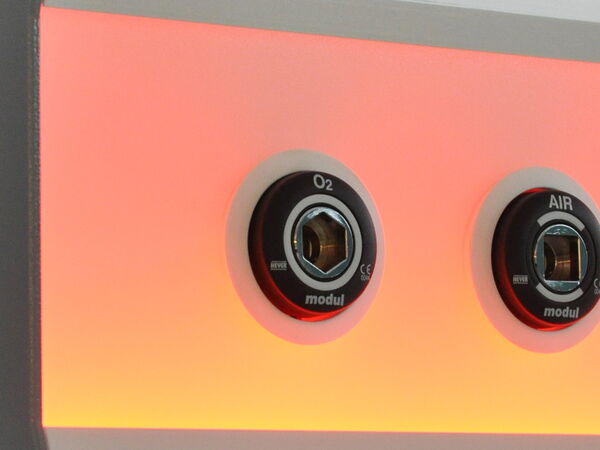

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
General information
Media current feed: Rear, from top or side
Optimum assembly height: 1650mm (rail bottom edge)
Optional light control: DALI DIM
HOT OFF THE PRESS, DIGITAL ONLY - OUR BROCHURES
ambient – Comfort in 1001 colours
Assembly, cleaning and maintenance
01. Assembly
The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.
02. Cleaning
Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.
Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.
03. Maintenance & repair
The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.
04. Accessories
Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
