calmea

SINGLE BED LIGHT
NORMAL CARE

Downloads

Aesthetics – Redefined

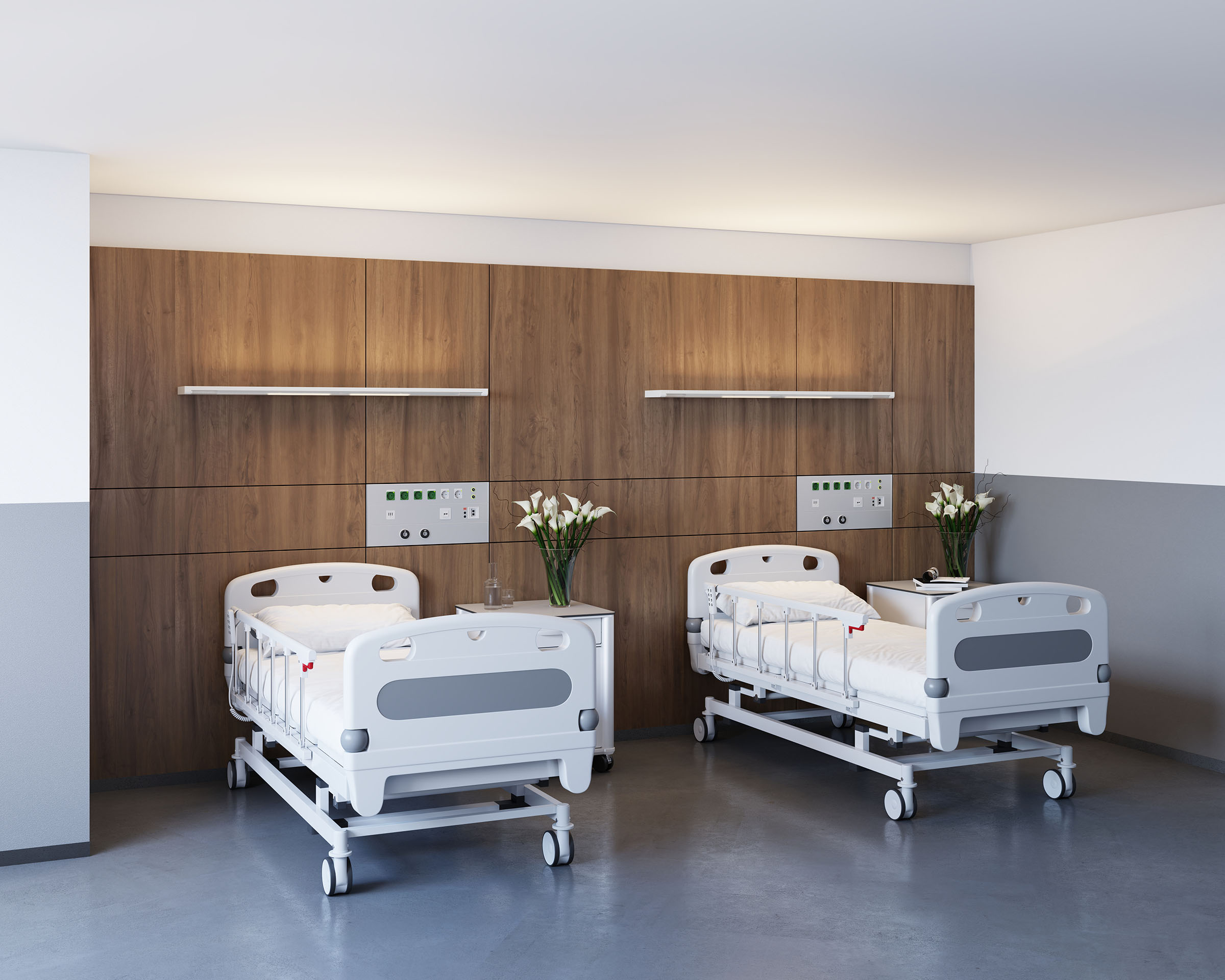

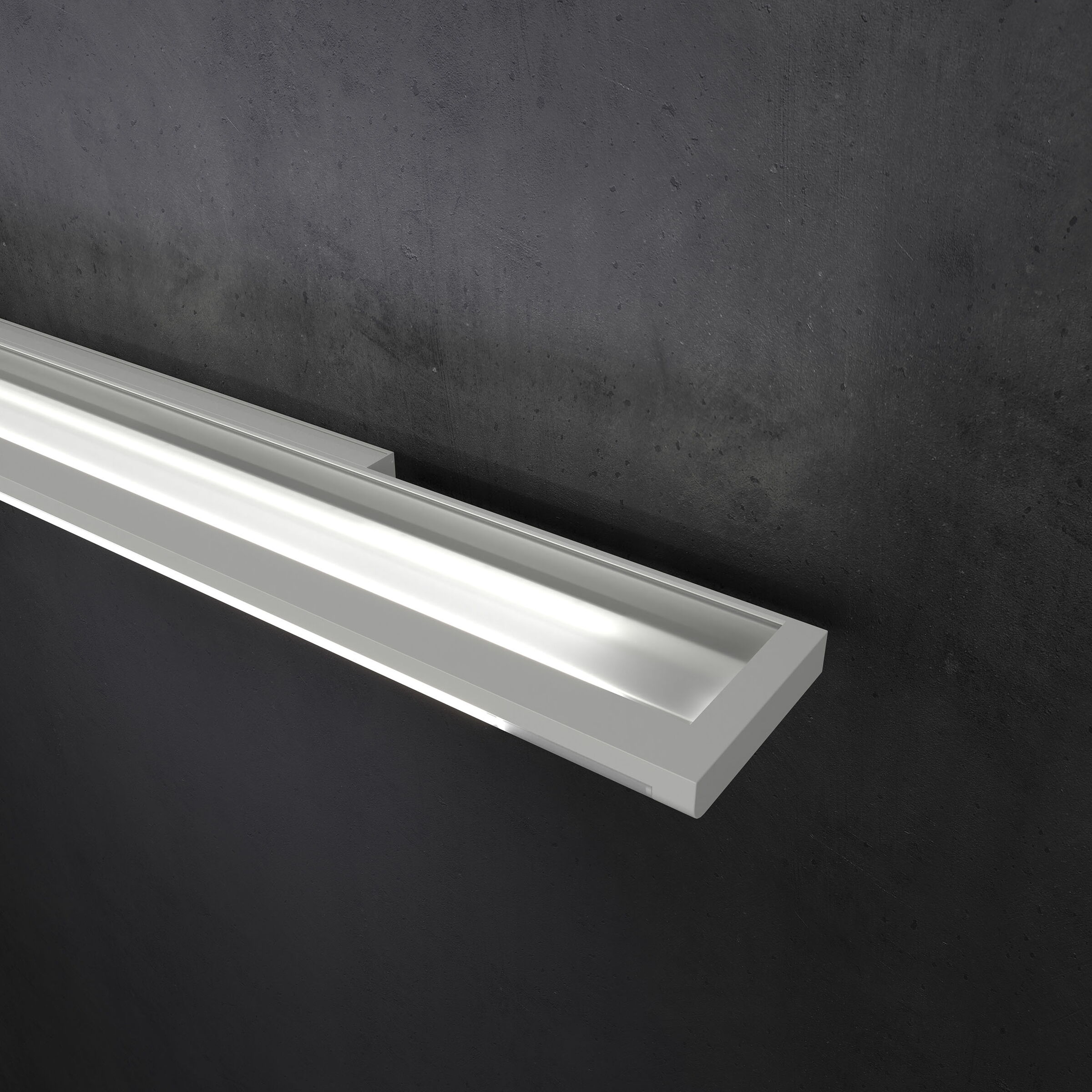

calmea is a stylish single-bed light specifically designed for use in healthcare settings. It provides flexible lighting that enhances patient comfort and supports the efficiency of healthcare staff. calmea meets the key lighting requirements in hospitals and care facilities, including general lighting, reading light, examination, and night lighting.

With high color rendering and adjustable color temperatures, it not only ensures optimal lighting conditions but also creates an inviting, cozy atmosphere with its sleek, minimalist design. The attractive design and versatile lighting settings promote a pleasant environment for patients. Thanks to various mounting options, calmea can be effortlessly integrated into any room concept.

Key Details

Applications:
Project-specific single-bed light for illuminating
patient rooms in hospitals.

Mounting Options:
» Direct wall mounting
» Mounting via mounting profile

Accessories:
The integrated accessory groove in the mounting profile offers versatile options for attaching accessories.

Luminous Flux:
Over 17,000 lumens in total
With 4 different lighting modes

Color Temperatures:
3000K, 4000K
tunableWhite 2700 – 6500K

Wir sind modul technik

Seit 1984 entwickeln wir als familiengeführtes Unternehmen Medizintechnik, die Ärzte und Pflegepersonal unterstützt, Patienten in den Mittelpunkt stellt und durch Innovation und Qualität „Made in Germany“ überzeugt.

01. Kundennah

Dank des engen Austauschs mit Ärzten und Pflegepersonal entwickeln wir passgenaue Lösungen, die den Alltag im medizinischen Umfeld spürbar erleichtern.

02. Erfahrung

Seit 1984 steht unser Familienunternehmen für Innovation und Qualität – getragen von jahrzehntelanger Expertise und einem engagierten Team.

03. Lösungsorientiert

Individuelle Herausforderungen verlangen maßgeschneiderte Antworten – wir liefern kreative und funktionale Medizintechnik, die überzeugt.

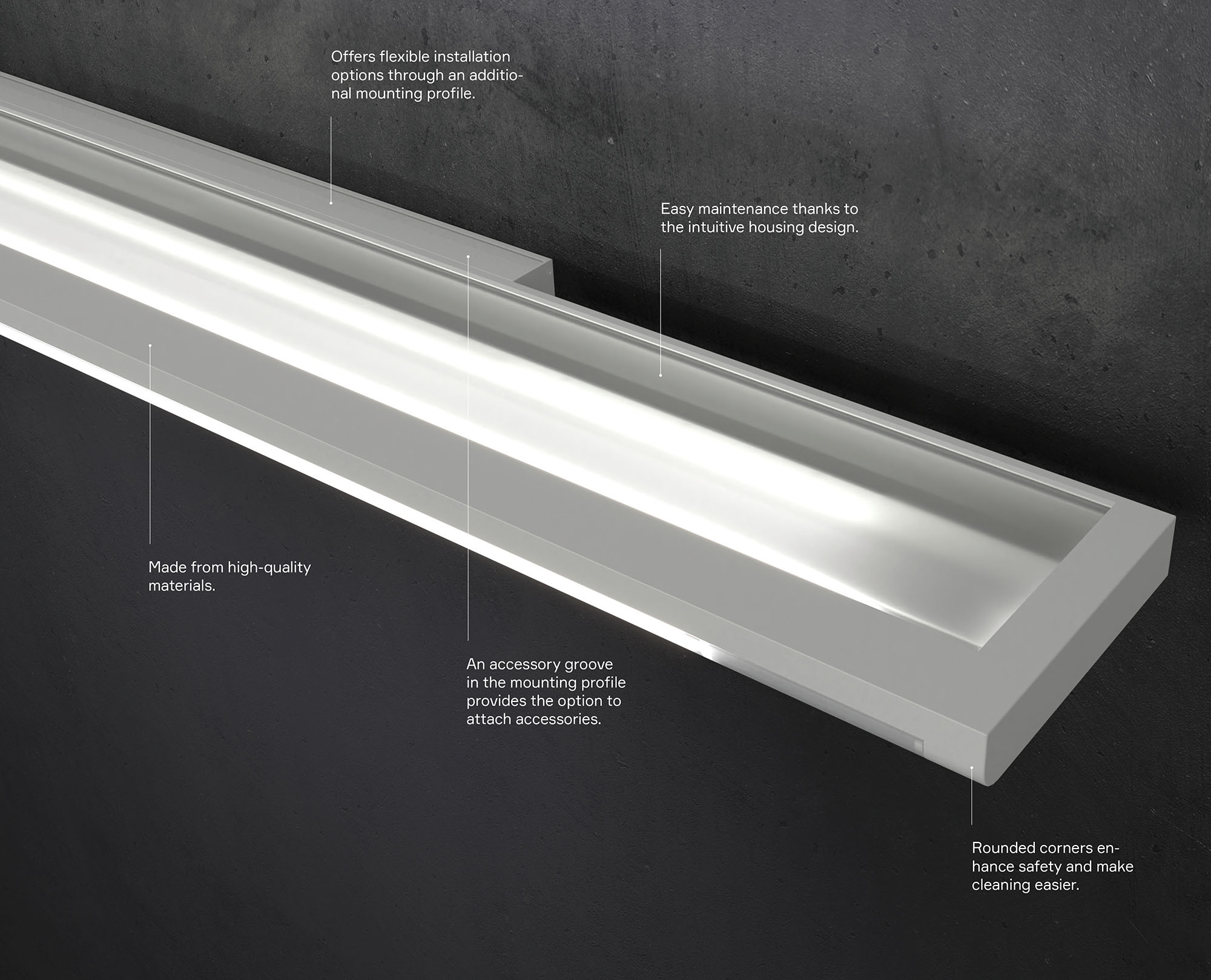

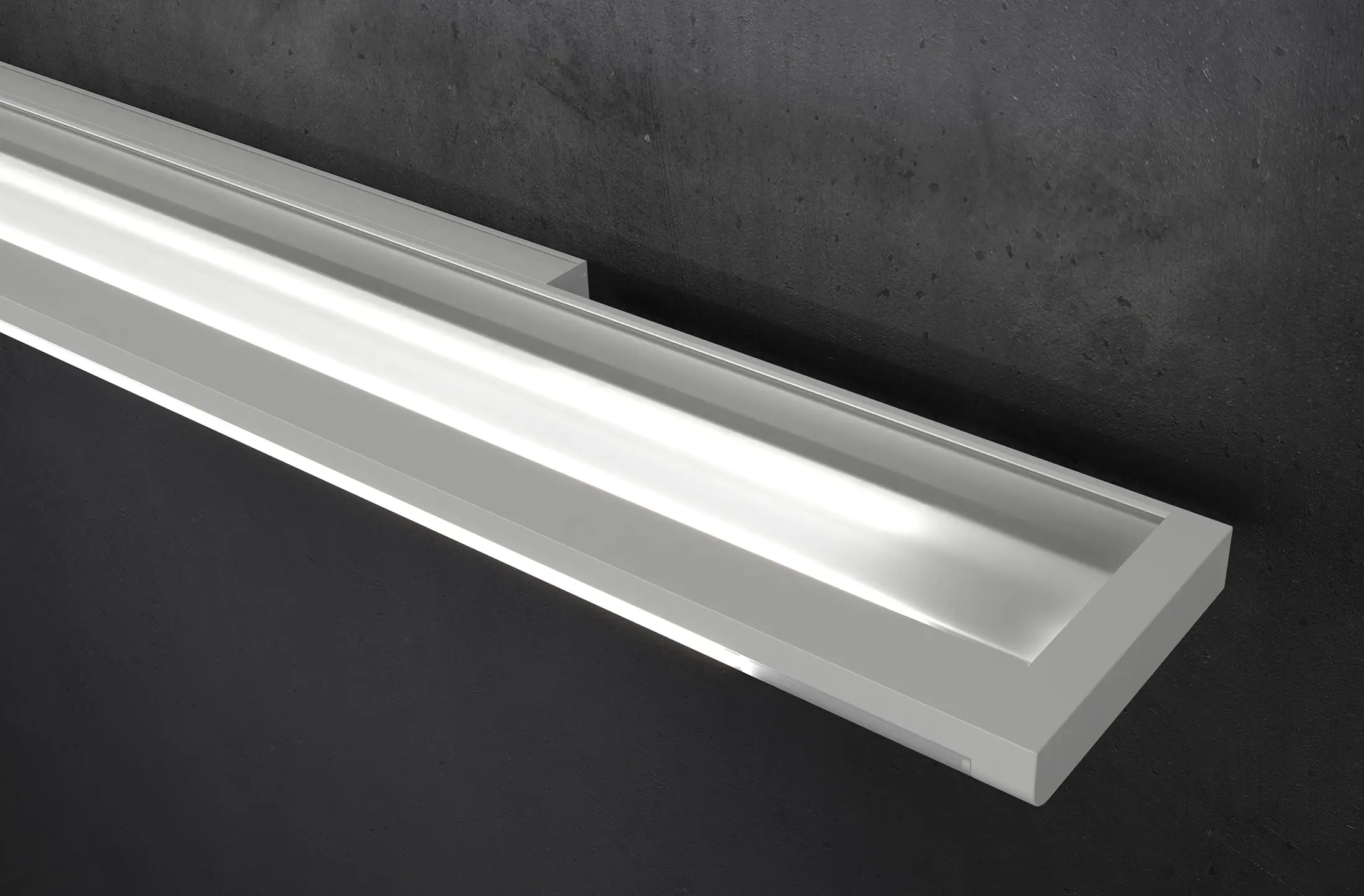

Features

Thought through to the last detail

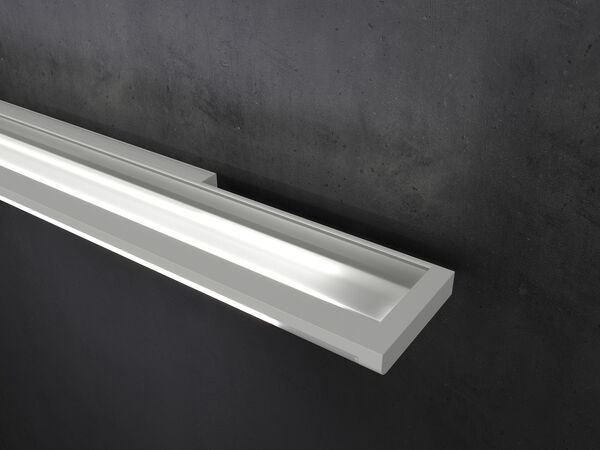

With a clear design language, high-quality technology, and versatile features, calmea sets new standards for sophisticated lighting solutions in modern interior concepts.

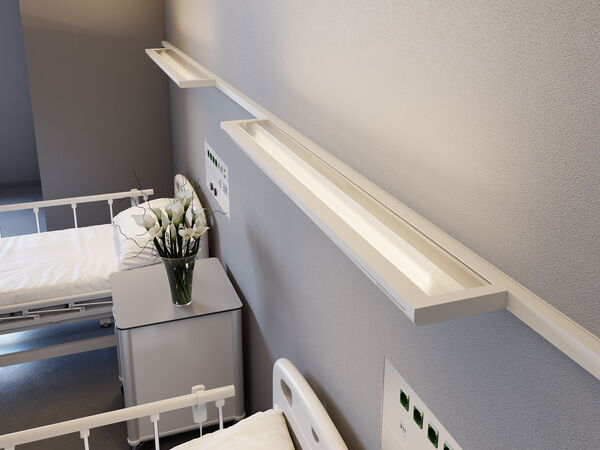

Offers flexible installation options through an additional mounting profile.

An accessory groove in the mounting profile provides the option to attach accessories.

Easy maintenance thanks to the intuitive housing design.

Made from high-quality materials.

Rounded corners enhance safety and make cleaning easier.

Lighting scenarios

Needs-Based Lighting in Everyday Care
Whether for examinations, reading, general illumination, or as a subtle night light – our luminaire adapts flexibly to various care situations. For improved orientation, comfort, and efficiency in standard care environments.

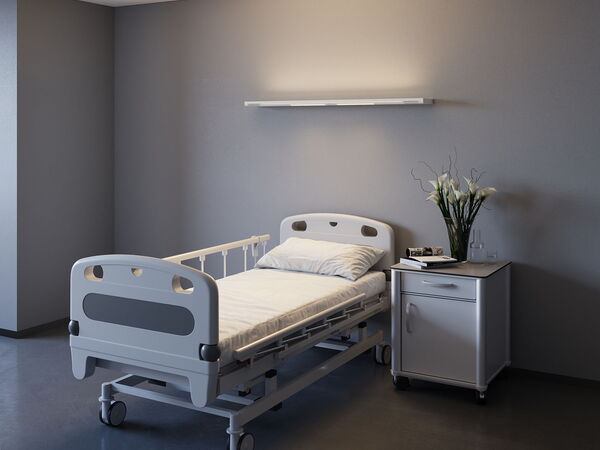

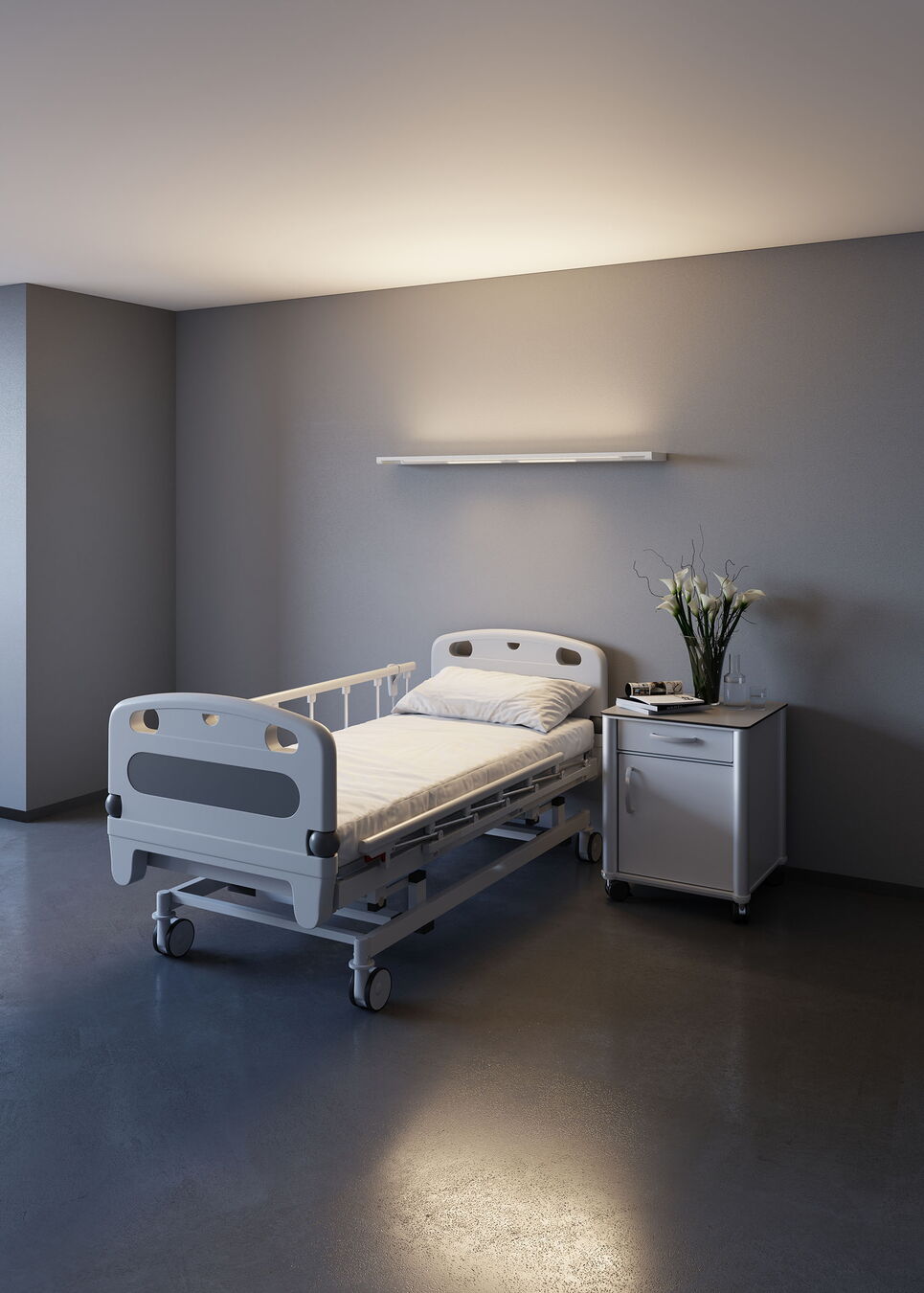

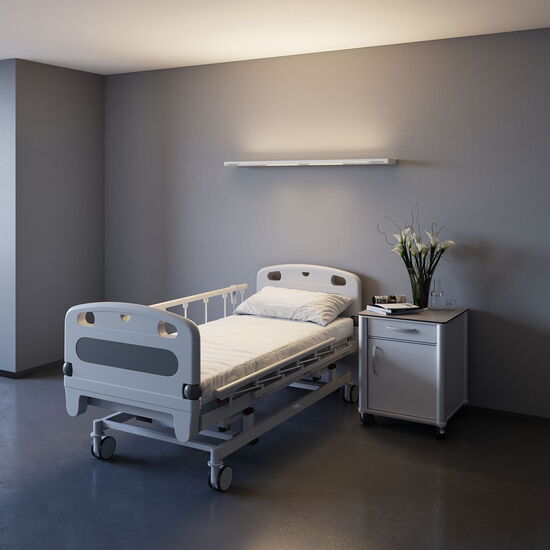

01 Examination lighting
For examinations and treatments, an additional examination light can be activated alongside the indirect lighting and reading light.

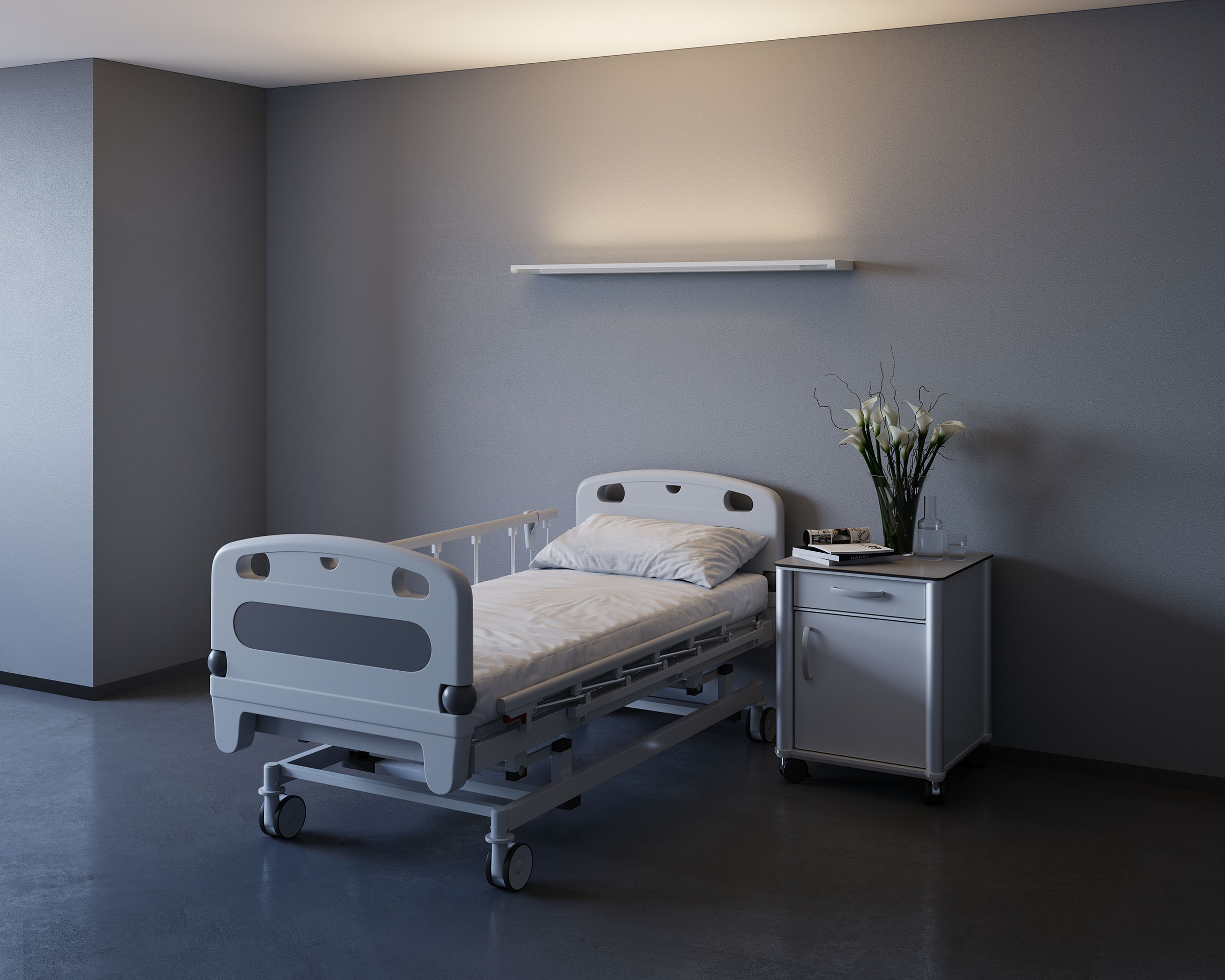

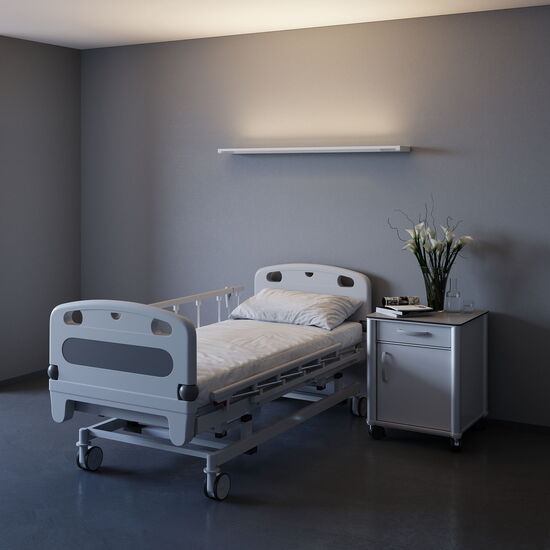

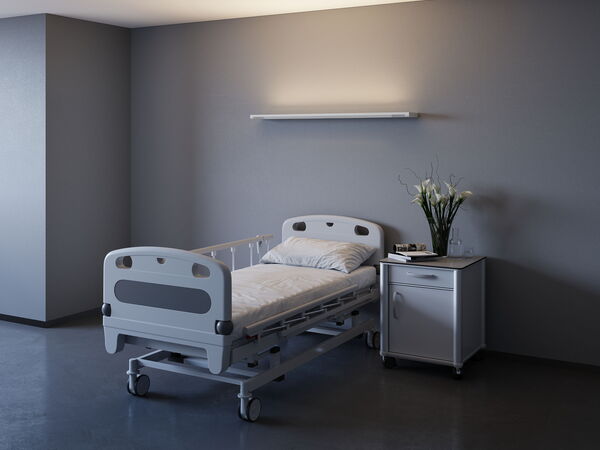

02 General Lighting
Indirect lighting is used to create a cozy and homely atmosphere.

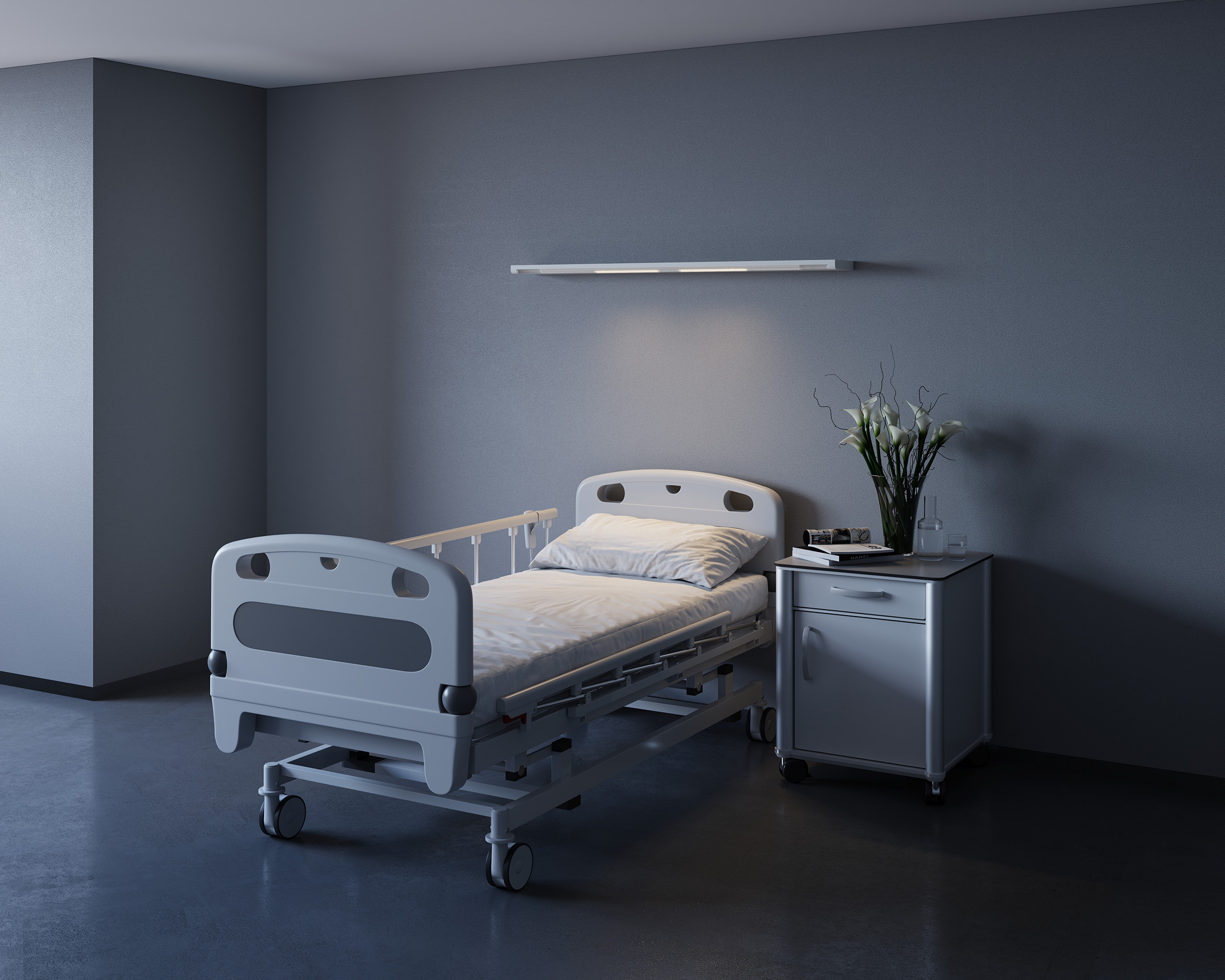

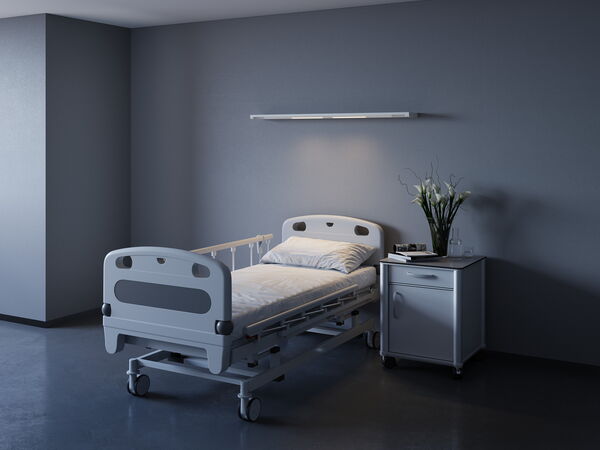

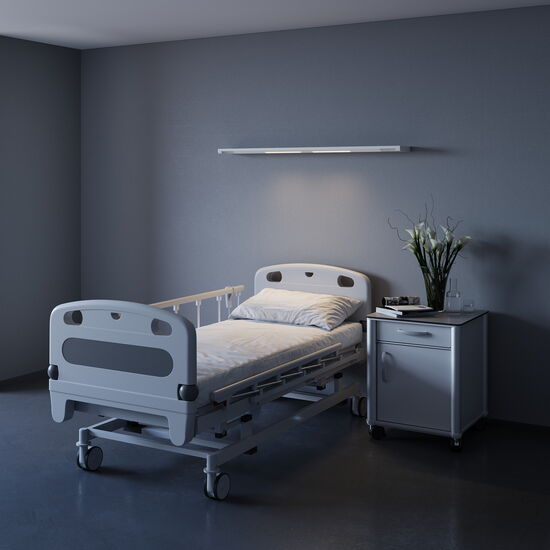

03 Reading Light
The glare-free reading light ensures the required level of brightness and high uniformity on the reading surface.

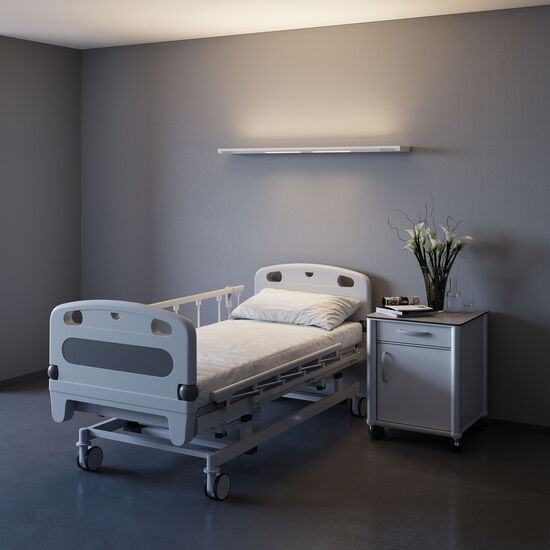

04 Basic Examination Lighting
Reading light and indirect light serve as examination lighting for simple examinations.

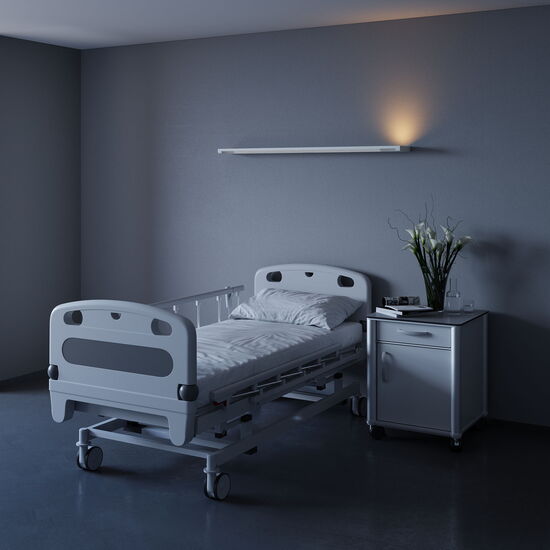

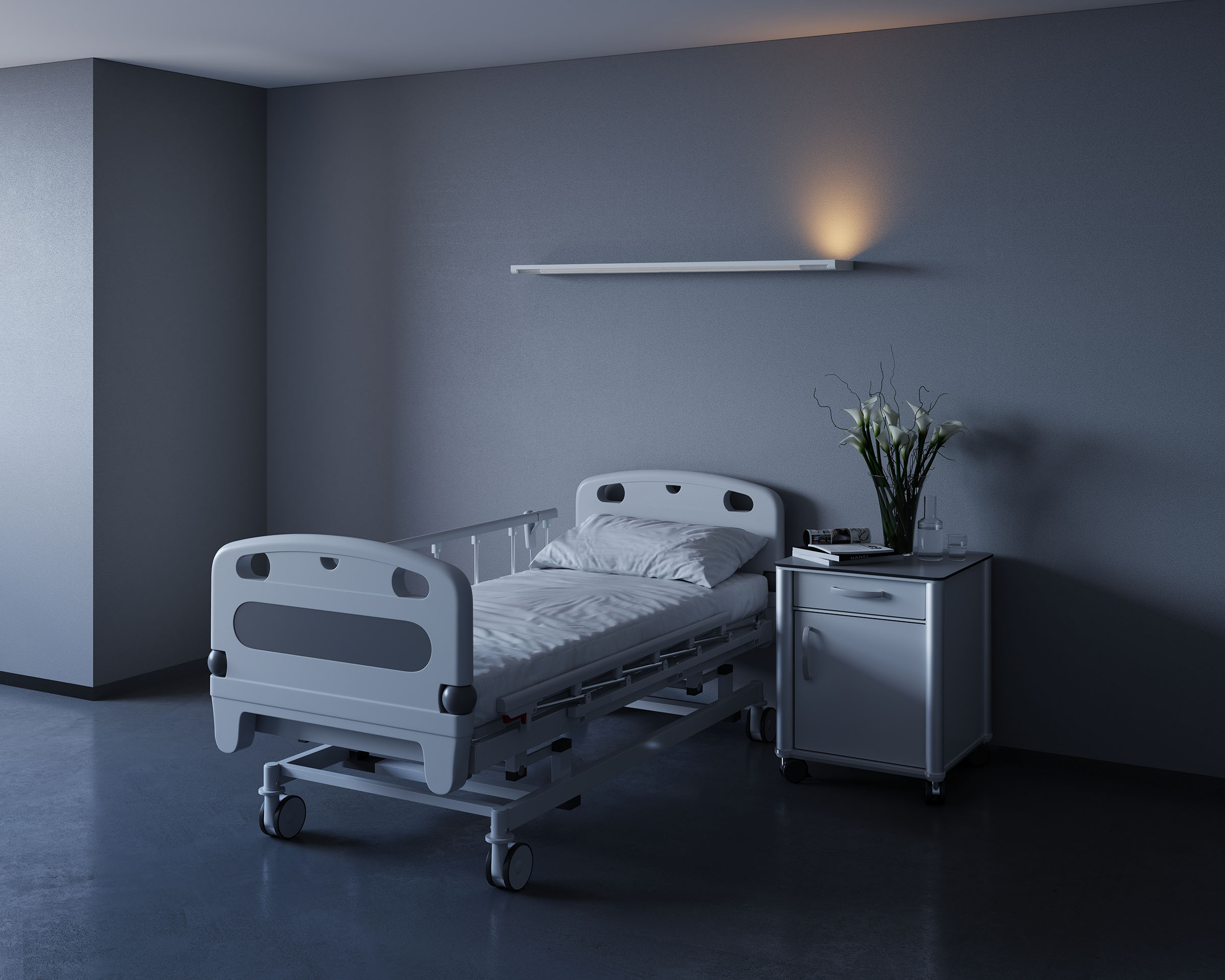

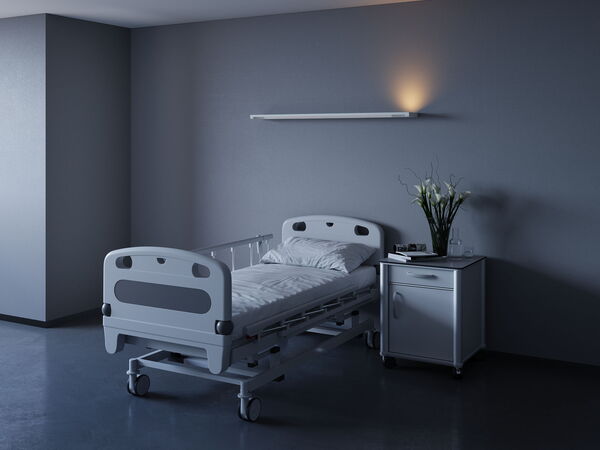

05 Night Lighting
A separate night light provides the necessary illumination for orientation during the night.

WE ARE HERE FOR YOU! WE LOOK FORWARD TO HEARING FROM YOU.

SUBMIT YOUR INQUIRY NOW !

Mounting Scenarios

Flexibly Mountable – Suitable for Any Care Room
Depending on the structural conditions, our luminaire can be mounted directly on the wall or elegantly integrated using a wall profile. A harmonious, functional solution for care environments.

Top View

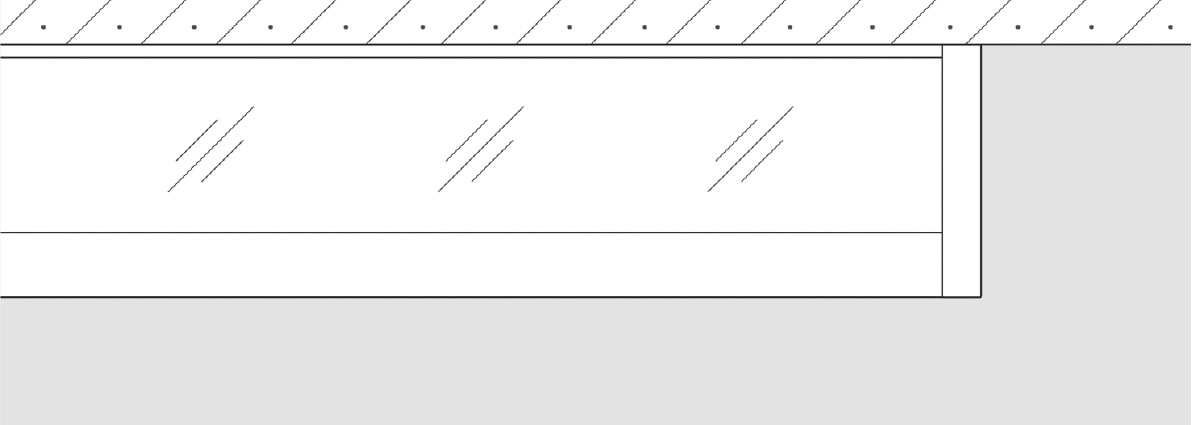

Direct wall mounting
The simplest way to integrate calmea into the room design.

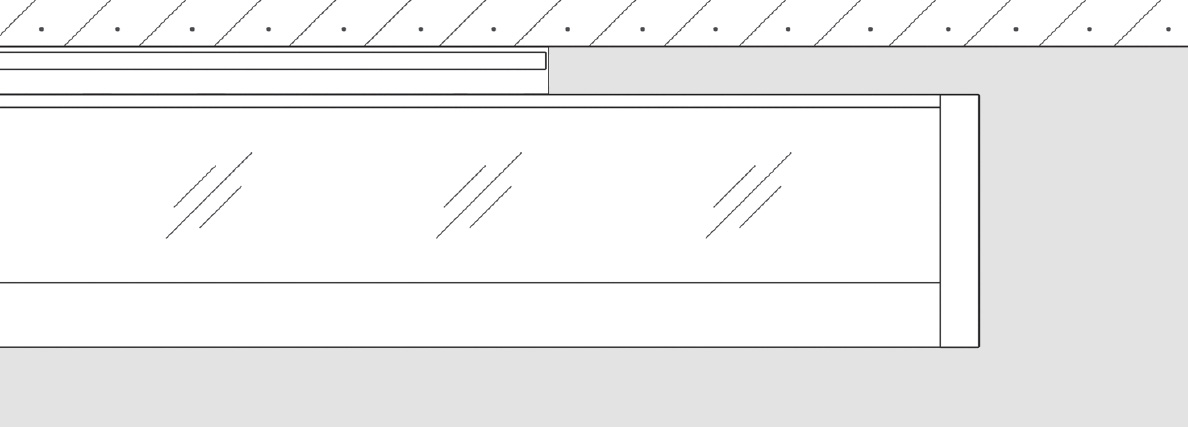

Wall mounting with a short wall profile
The wall profile enhances the visual lightness of the luminaire. Additionally, it offers an option for accessory installation.

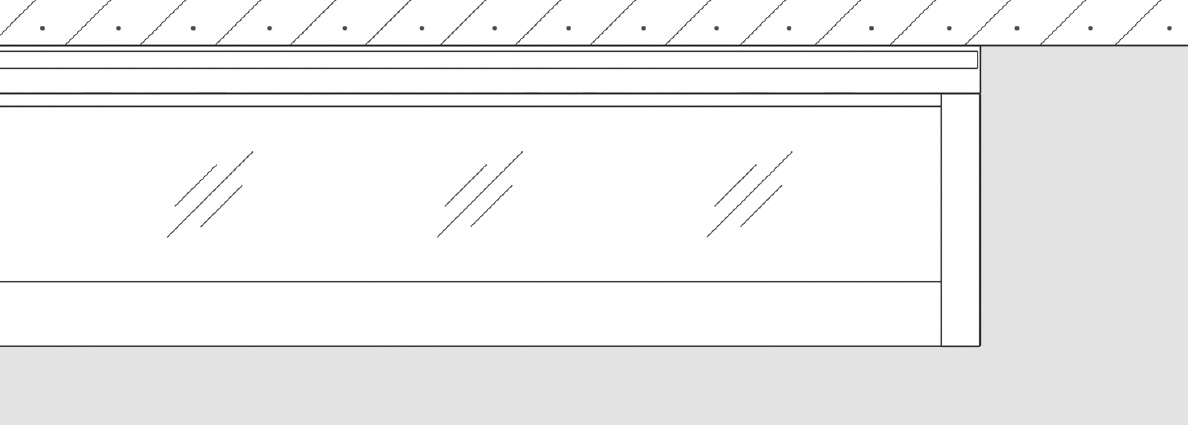

Wall mounting with a full-length wall profile
The wall profile can be designed to match the length of the luminaire, creating a cohesive visual unit while also providing additional space for accessory mounting.

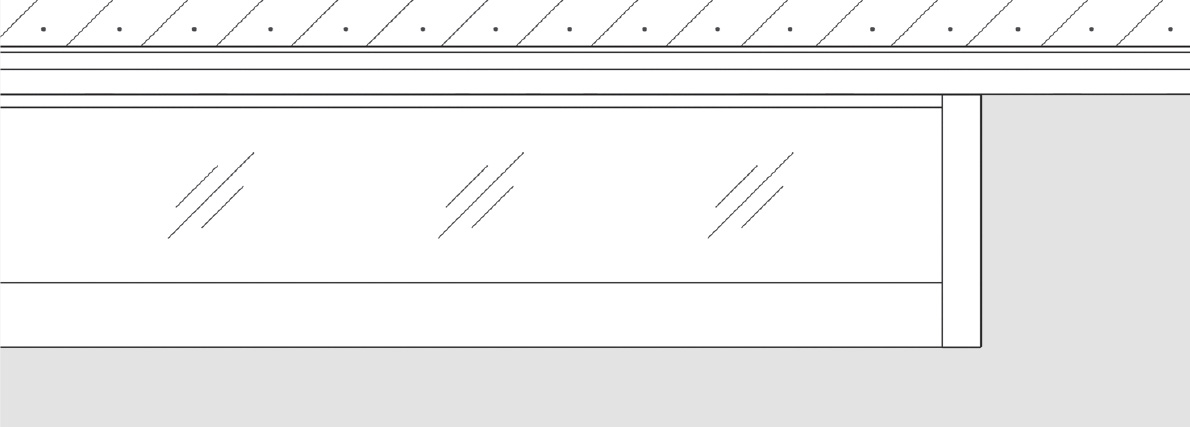

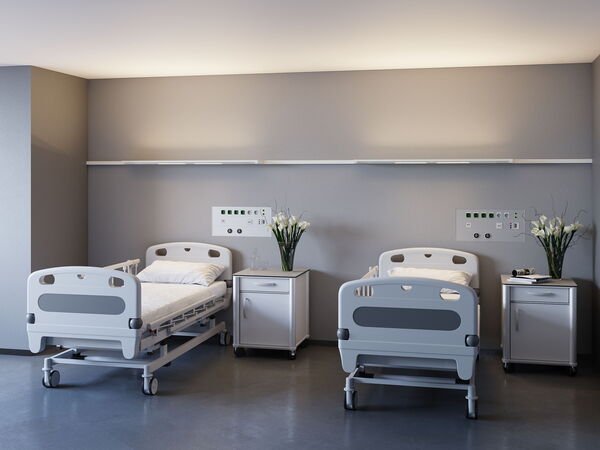

Wall mounting with a continuous wall profile
The continuous wall profile can be used as a cable channel during a subsequent installation. It also allows for flexible positioning within the room.

Side View

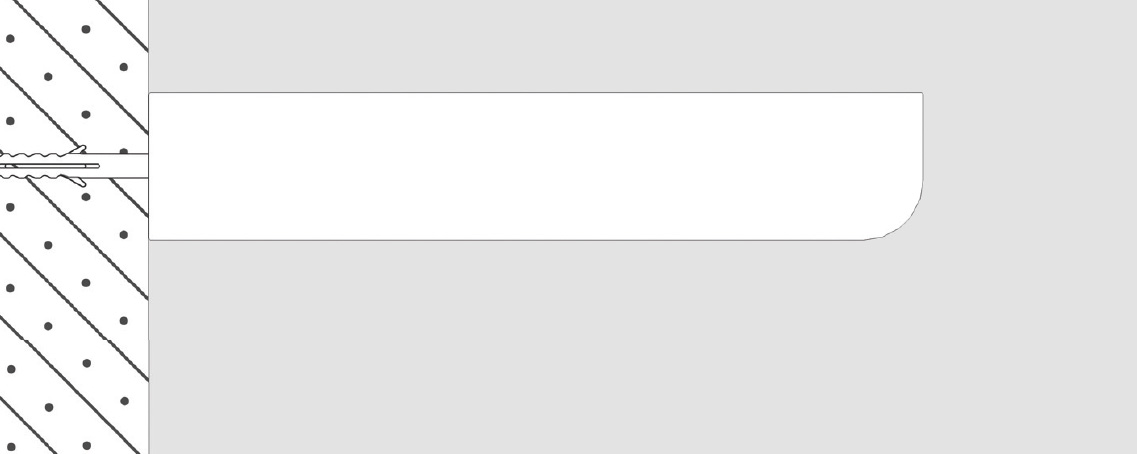

Direct wall mounting
With suitable wall conditions, calmea can be mounted without the need for an additional wall channel.

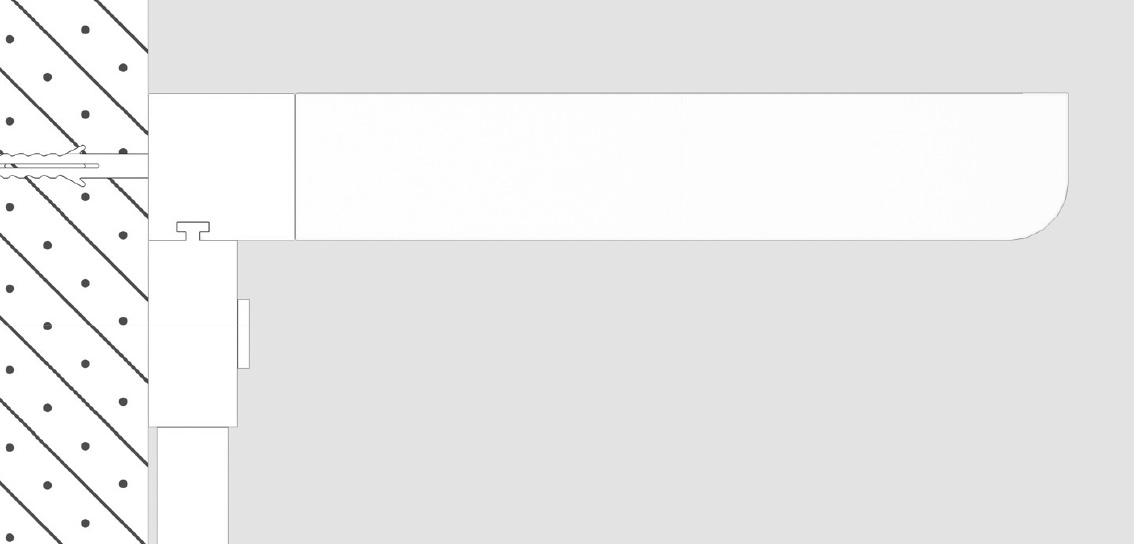

Wall mounting with wall profile
The wall channel provides the option to accommodate various accessory components.

Wall mounting with double wall profile
To increase the support surface in cases of unfavorable wall conditions, calmea offers a profile extension.

General Information

Housing Colors White (RAL 9016), Black (RAL 9005), Silver (RAL 9006)
Protection Class IP20
Control Options LPD (PushDim Button Dimming), LDO (DALI),
HCL (Human-Centric Lighting with integrated stand-alone controller)
Luminaire Dimensions Height: 37mm; Depth: 195mm
Length: 1500mm, 1320mm, 1220mm, 1080mm

Advantages of calmea

01. Versatile Lighting Functions

Supports all key lighting scenarios in everyday care – from general lighting and reading light to examination and night lighting.

02. Flexible Mounting

Optional direct wall mounting or integration with a wall profile – also suitable for accommodating accessories.

03. Aesthetic and Functional

High-quality, minimalist design with excellent color rendering and tunableWhite technology for a pleasant atmosphere and optimal lighting conditions.

Lighting Technical Details

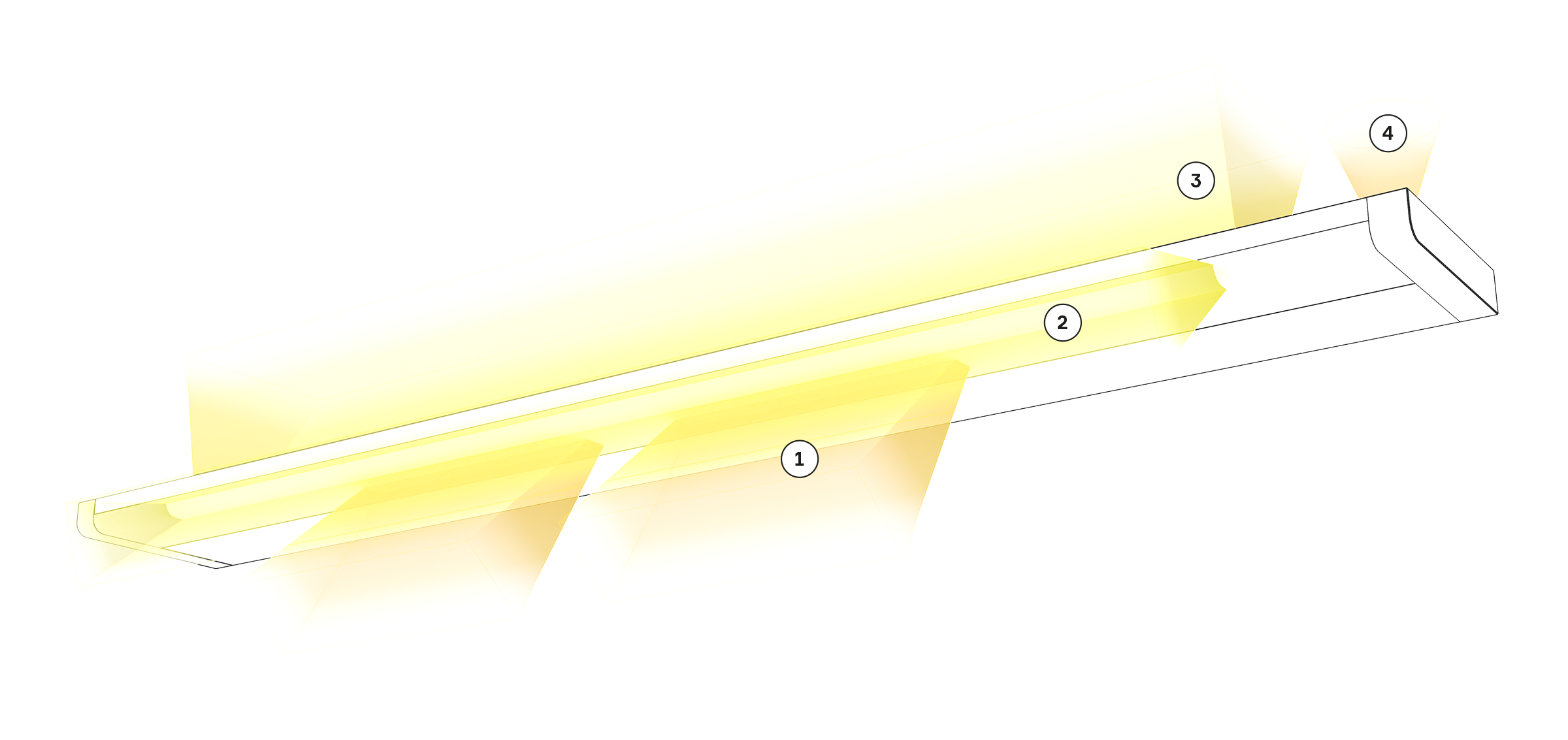

The following diagram and corresponding table illustrate the lighting characteristics of our luminaire – providing a solid basis for planning and optimal integration into your project.

  Color Temp [k] Luminous Flux [lm] Power [W] CRI Available Lengths [mm]
1Reading light 3000 1350 14 CRI >90 1080, 1220, 1320, 1500
4000 1500 14 CRI >90
2Examination light 3000 4000 43 CRI >90 1320, 1500
4000 4400 43 CRI >90
3Indirect light TW (68W) 2700-6500 up to 8000 68 CRI >90 1500
3Indirect light TW (54W) up to 6400 54 CRI >90 1220
3Indirect light (85W) 3000 10300 85 CRI >90 1320
4000 11500 85 CRI >90
3Indirect light (68W) 3000 8300 68 CRI >90 1080
4000 9200 68 CRI >90
4Night light 3000 200 3,5 CRI >90 1080, 1220, 1320, 1500
4000 220 3,5 CRI >90

HOT OFF THE PRESS, DIGITAL ONLY – OUR BROCHURES

calmea – Aesthetics – Redefined

Assembly, cleaning and maintenance

01. Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

02. Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

03. Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
