moduversa HF

CEILING SUPPLY UNIT
OPERATING ROOMS

Downloads

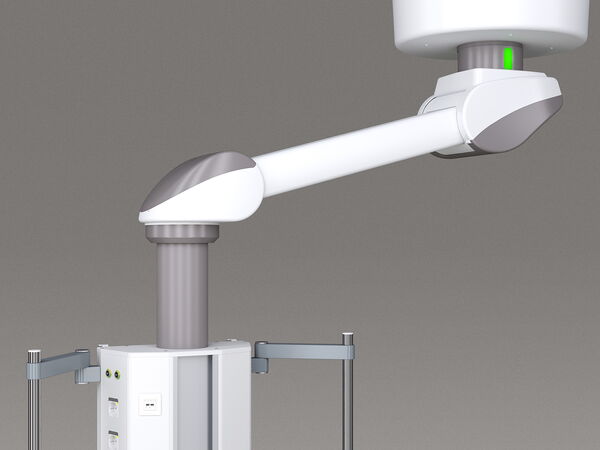

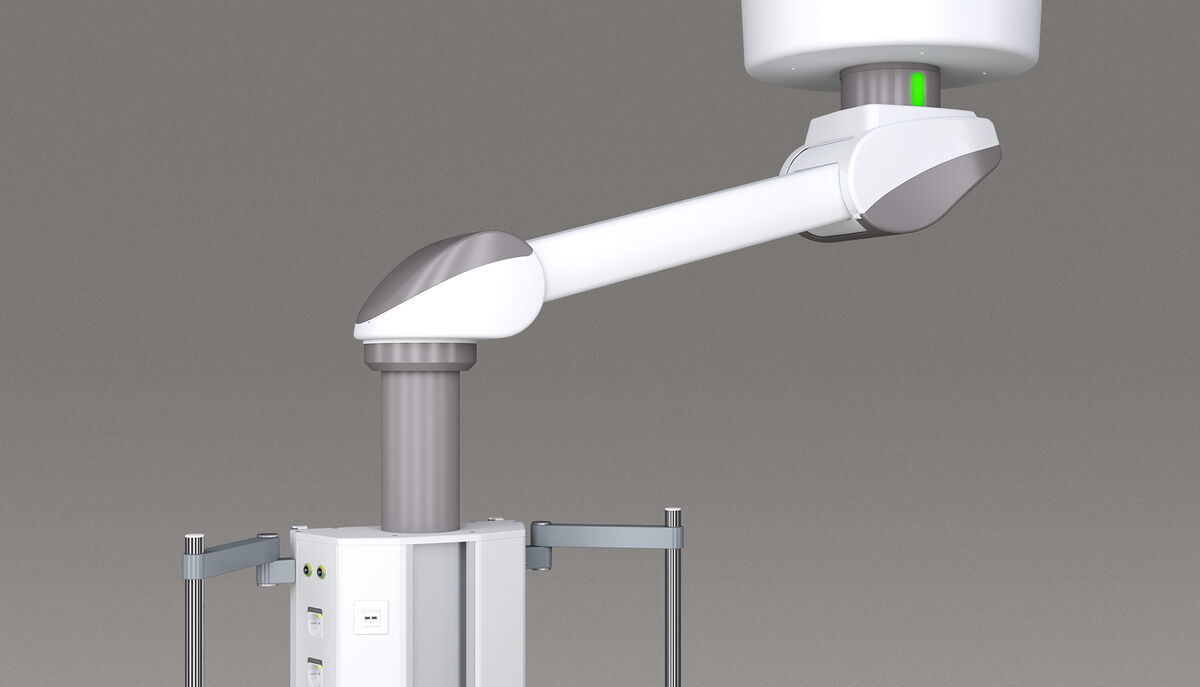

Featherlight and always on your side

Whether you are sitting or standing, moduversa HF is always by your side and offers optimum access in every position to all media connections and apparatus on the rotatable
BSP 2500 supply head.

The positionable system has infinite horizontal and vertical adjustments and with an arm length of 1 metre can adapt to every room size and work situation. The maximum arm load capacity of 180 kg is sufficient for most medical applications.

The maintenance-free electromagnetic brake system and the smooth swing arm enable precise positioning in both a vertical and horizontal direction. And here the spring can be set precisely for the respective load. LED signal lamps on the braking system make accurate operation easier.

Like all moduversa products, moduversa HF can be designed as a single or tandem system.

Key Details

Electric specifications
Nominal voltage: 115 V - 240 V / 50-60 Hz - continuous operation
Protection class: I
Protection type: IP 20

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Compressed air: 8 bar
Vacuum: - 0,8 bar
Laughing gas 5 bar
CO2: 5 bar
AGSS: 5 bar
Air-Motor: 8 bar

General information
Media current feed: From the top in the support arm
Braking system: Electromagnetic (optional compressed air)
Comfort option: Braking system with BrakeGuide*(optical feedback)
Total additional load of supply unit: Project-related
Height-adjustment: Spring force
* BrakeGuide cannot be combined with compressed air brake

Support arm length
1000 mm

Max. additional load support arm
180 kg

HOT OFF THE PRESS, DIGITAL ONLY - OUR BROCHURES

moduversa – Featherlight and always on your side

Gallery

Assembly, cleaning and maintenance

01. Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

02. Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

03. Maintenance & repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

04. Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.

Your contact

Hendrik Balagny

Sales Director

Tel.: +49(0)2602/9449-31
Fax: +49(0)2602/9449-11
Mob: +49(0)176/10089108
E-Mail:

„Good solutions start with listening. The direct connection to the customer is the key for me.“
