DVE 5500

CEILING SUPPLY UNIT
OPERATING ROOMS

Downloads

One supply unit – endless possibilities

With DVE 5500 modul technik presents a ceiling supply unit which can adapt to every working and room situation.

The compact and connection-ready design which can be equipped in any combination with high voltage and low voltage current, communications and data connections and medical gases, is the winning factor for this supply unit.

However, the particular strengths of the DVE 5500 are in its versatility, be it in its horizontal or vertical design, rigid mounting or rotation up to 330°. Whether as a pure supply unit equipped with carrier tubing for medical apparatus and storage with drawer blocks, DVE 5500 is always focused on your needs and requirements and never vice versa.

Key Details

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Compressed air: 8 bar
Vacuum: - 0,8 bar
Laughing gas 5 bar
CO2: 5 bar
AGSS: 5 bar
Air-Motor: 8 bar

General information
Media current feed: From the top in the support columns
Total additional load of supply unit: Project-related
Rotatable option: By 330°
Location of supply unit: Horizontal or vertical

HOT OFF THE PRESS, DIGITAL ONLY - OUR BROCHURES

DVE 5500 – One supply unit – endless possibilities

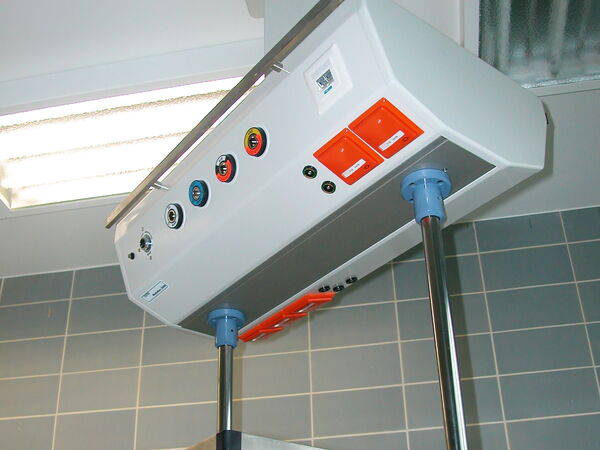

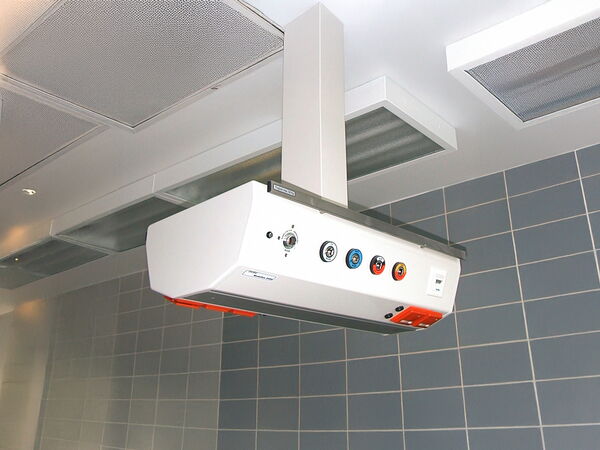

Gallery

Assembly, cleaning and maintenance

01. Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

02. Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

03. Maintenance & repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

04. Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.

Your contact

Hendrik Balagny

Sales Director

Tel.: +49(0)2602/9449-31
Fax: +49(0)2602/9449-11
Mob: +49(0)176/10089108
E-Mail:

„Good solutions start with listening. The direct connection to the customer is the key for me.“
