modufilio

Application area: Operating rooms
Product group: Pendant systems OR

The compact all-rounder – big in a small room

Our “smallest one” is also our latest and is packed full with innovative solutions in its construction, design, workmanship and equipment flexibility.

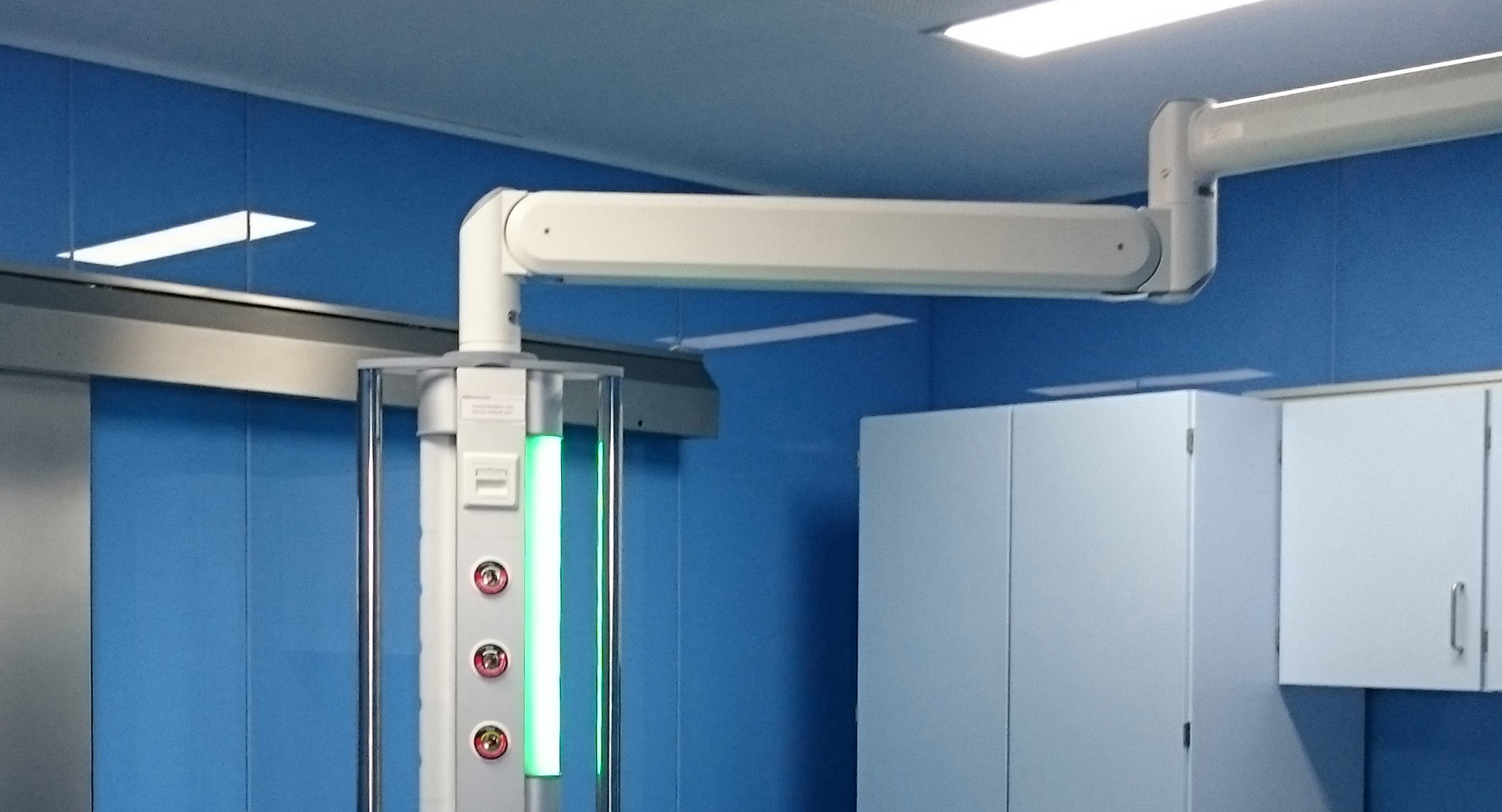

Whether for use in endoscopy or for outpatient treatment, wherever space conditions are cramped and working requirements are varied and flexible, this ceiling supply unit scores very highly.

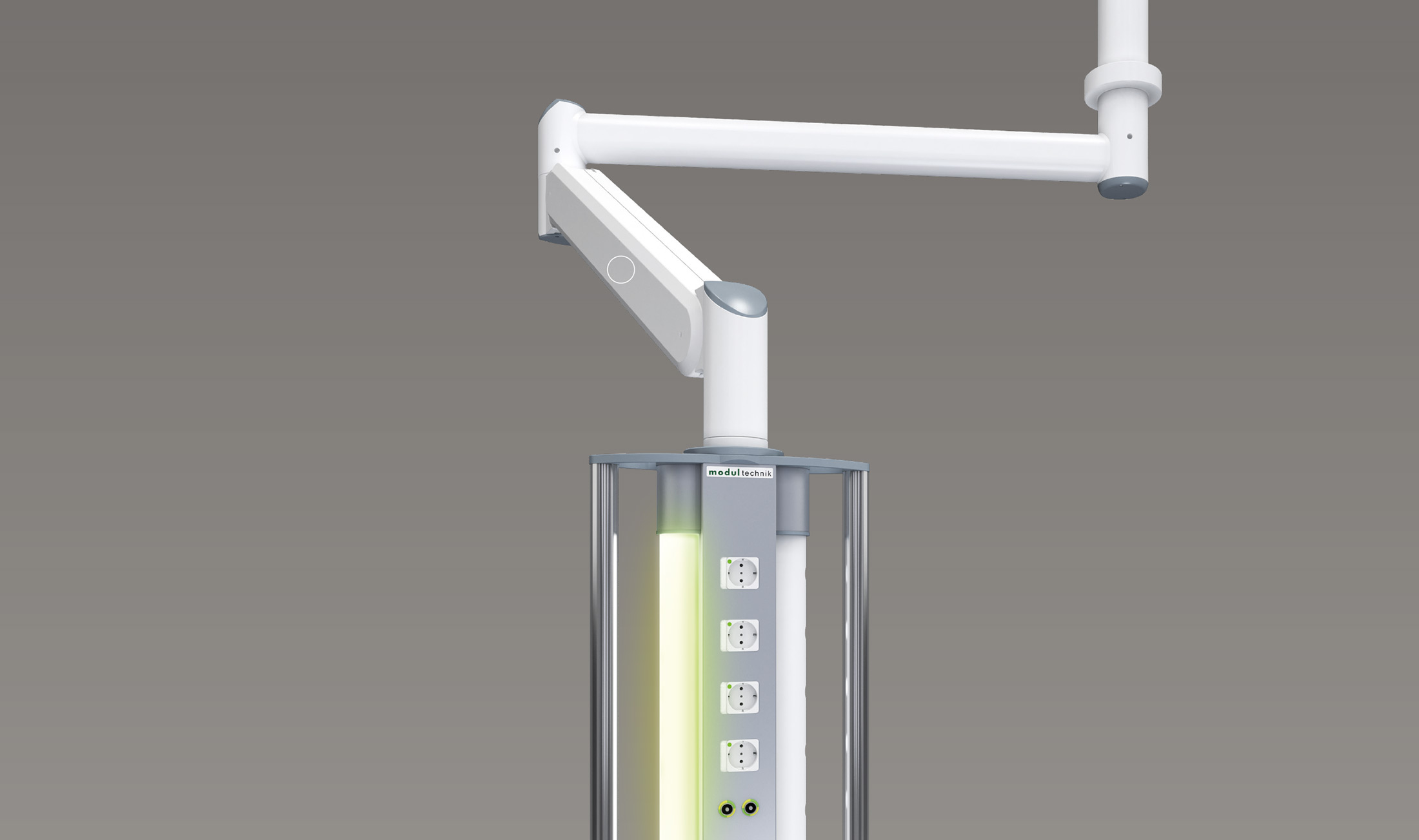

The lightweight spring arm of modufilio can move the compact supply head into any position in a maximum radius of 2.2 metres around the ceiling mount.

Despite its small size the unit can be equipped with a wide range of options including high voltage and low voltage current, medical gases, data and communications technologies and storage surfaces for medical apparatus.

An LED lamp which can also be supplied in different colours provides additional work area lighting.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
230 V - 240 V / 50 Hz - continuous operation
Protection class I
IP 20 degree of protection

Equipment features
lighting technology
Read more…

Lighting technology LED at side (optional)
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection cross-section: 1mm² max.
Protection type: IP 54
Lamp output: 2.5 W

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar

General information
Minimum opening for cable: 28 mm x 28 mm
Narrowest point (bearing): Ø = 50 mm
Spring ranges: 8 - 16 kg; 15 - 32 kg; 30 - 45 kg
Additional load in support arm: Max. 45 kg
Optional cable management
Optional console

Standard design

Equipment features
high-voltage technology
Read more…

High-voltage current technology
4 mains sockets, brand Peha (COMPACTA)
2 potential equalisation sockets (POAG)

Equipment features
communications technology
Read more…

Communications technology
1 data socket, RJ 45, 2 pcs, brand Peha (COMPACTA)
1 hollow wall sockets, Ø 68mm

Equipment features
lighting technology
Read more…

Lighting technology LED, at side
Lamp output ≙ 2,5 W

Equipment features
medical gas technology
Read more…

Medical gas technology
1 gas tapping point oxygen (O²), brand modul
1 gas tapping point compressed air (Air), brand modul
1 gas tapping point vacuum (Vac), brand modul

General information
Cable management, at side
Console, below
Support head: Length ≙ 720 mm
Double Extension Arm: Length ≙ 2,200 mm
Total additional load: 30 kg

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
