moduflex nova

Application area: Intensive care
Product group: Beam systems

Compact, modern and flexible

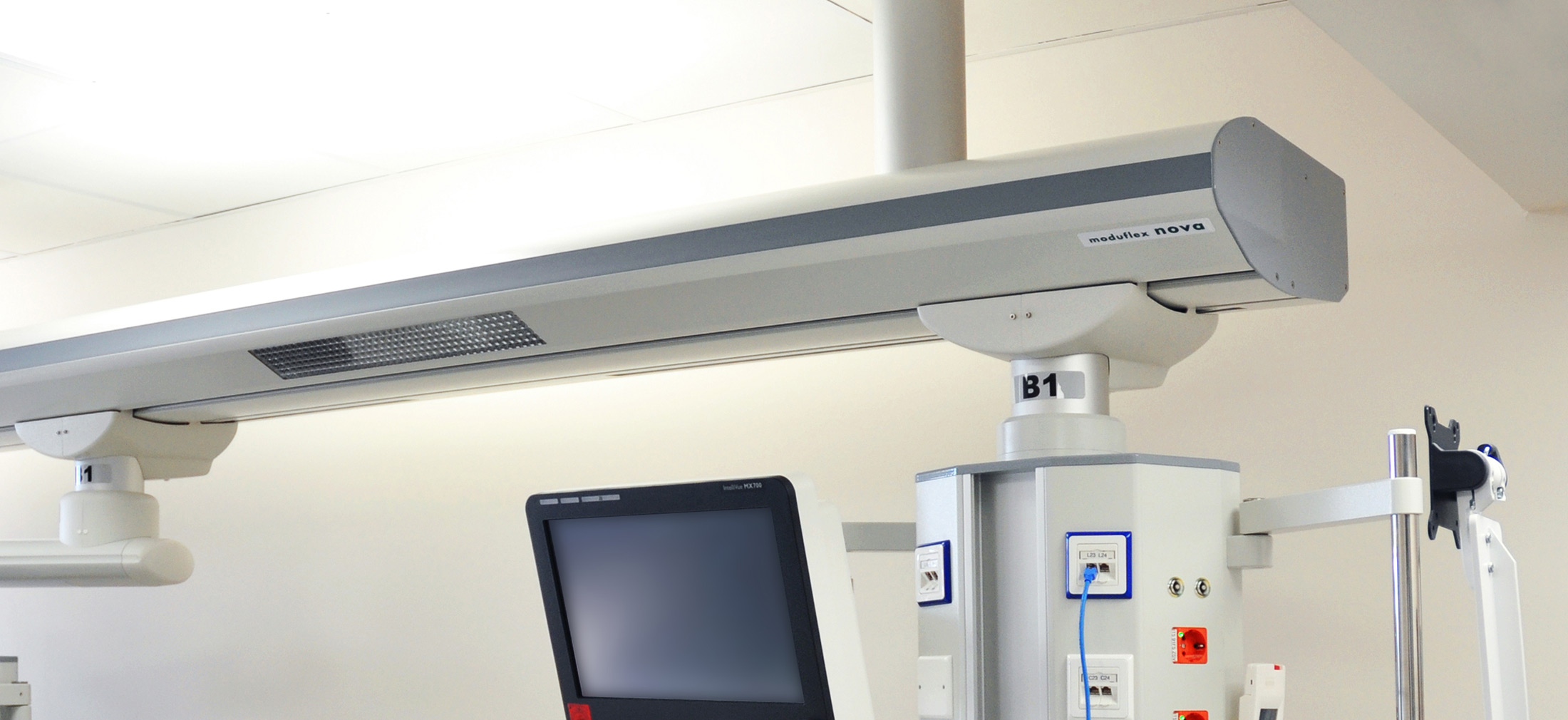

The eye is immediately drawn to the appealing aesthetics of the moduflex nova intensive care unit, and also by its very compact design and the linear, easy to clean housing. However, it is its inner values and its high degree of flexibility that make the system an intensive care all-rounder.

The system incorporates all media accesses and can be equipped with a range of lighting solutions including room lighting, examination, reading and night lights. Another option is the Visual Timing Light for bio-dynamic lighting control, also on the intensive care ward. The BSP 2500 basic support head system provides the media tapping points which we plan and fit customised to your requirements.

As well as its interfaces for high voltage and low voltage current, medical gases and other media, the BSP 2500 supply head system has many other options for use with apparatus carrier systems, drawers, monitor mounts, working lights and much more.

To create maximum operating flexibility, the swivel arms and the movability of the supply head ensure a range of +/- 500 mm. Ideally moduflex nova is equipped with a supply head for the infusion side and an additional one for the monitoring side.

BSP 2500

BSP 2500 can be horizontal or vertical in design. BSP 2500 is used under moduflex nova as the horizontally movable supply trolley.

In combination with our support arm system, the ceiling supply units of the moduversa range are created.

BSP 2500 incorporates all the connections for full low voltage and high voltage current, data and communications technologies and medical gases. Every medical accessory can be adapted through the optional tubes and the front-integrated rails.

Technical data

Equipment features
high-voltage technology
Read more…

Electric specifications
Nominal voltage: 230 V - 240 V / 50 Hz - continuous operation
Protection class: I
Protection type: IP 20

Equipment features
lighting technology
Read more…

Lighting technology
Nominal voltage: 230 V - 240 V / 50 Hz
Protection class: I
Connection type: Plug connection
Connection cross-section: 1.5mm² max.
Protection type: IP 20

Reading light (LED): Output ≙ 23 W
Reading light (T5 fluorescent tubes): Output ≙ 24 W / 2 x 24 W
Indirect lighting (LED): Output ≙ 64 W
Indirect lighting (T5 fluorescent tubes): Output ≙ 2 x 54 W
Night light (LED): Output ≙ 4.3 W

Equipment features
medical gas technology
Read more…

Operating pressure of medical gas technology
Oxygen: 5 bar
Compressed air: 5 bar
Vacuum: - 0,8 bar
CO2: 5 bar
AGSS: 5 bar

General information
Media current feed: From the top in the support columns
Additional load per supply head max. 115 kg
Optional light control: DALI DIM
Optional indirect RGB lighting: Output ≙ 3 x 39 W

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
