Application area: Normal care
Product group: Wall supply units (decorative)

Elegantly concealed values

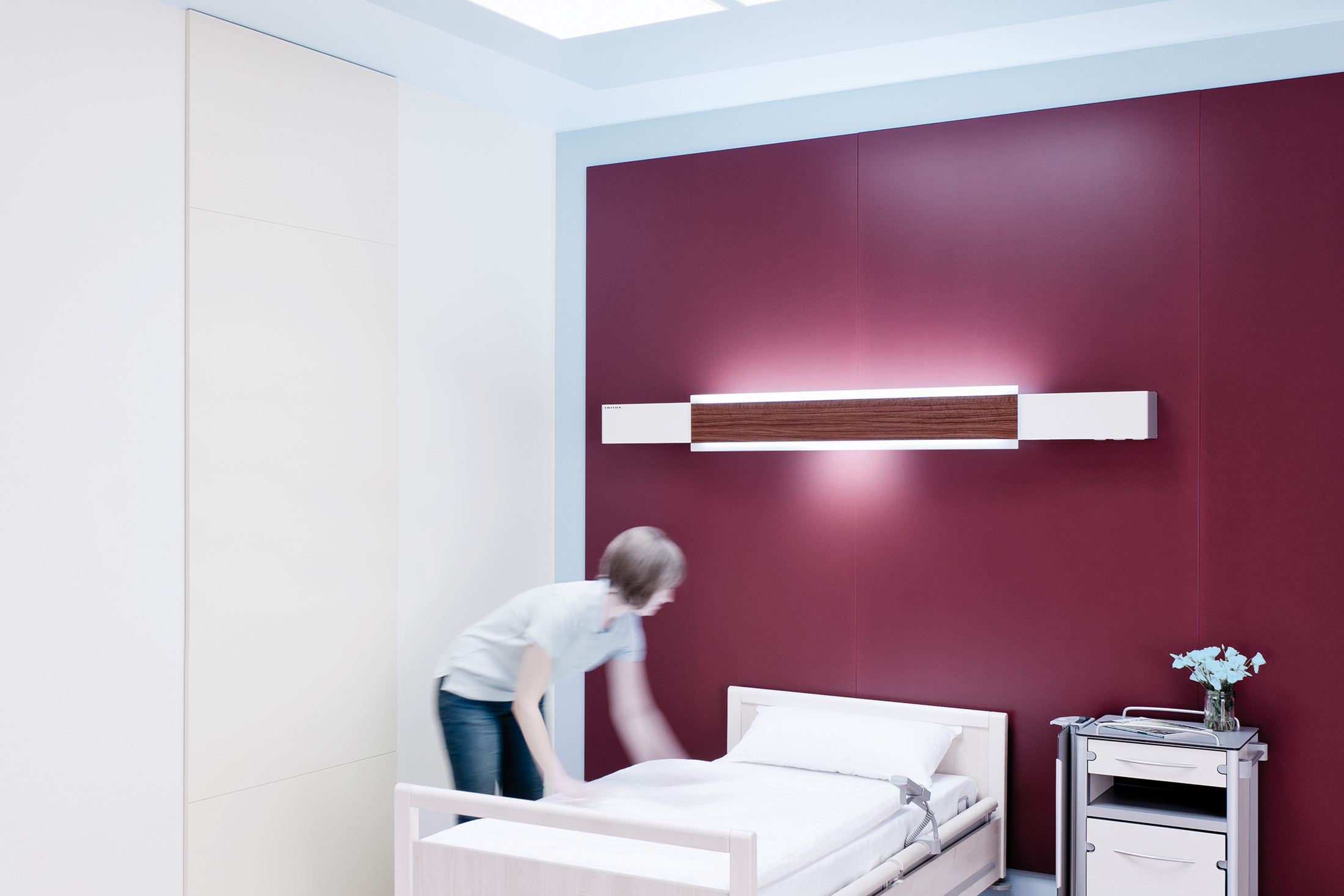

The modular wall supply system complies with the high requirements for modern patient supply units. The kubion is equipped with a host of functions, is easy to clean, has a wide diversity of applications and simply makes the working day easier for care personnel. The linear design of the basis module can be individually and stylishly adapted with diverse colours and wooden decor and can also be expanded with various decor modules. This means an attractive and custom-designed wall supply system can be created very quickly, making everyday care significantly easier thanks to many intelligent details.

Highlights

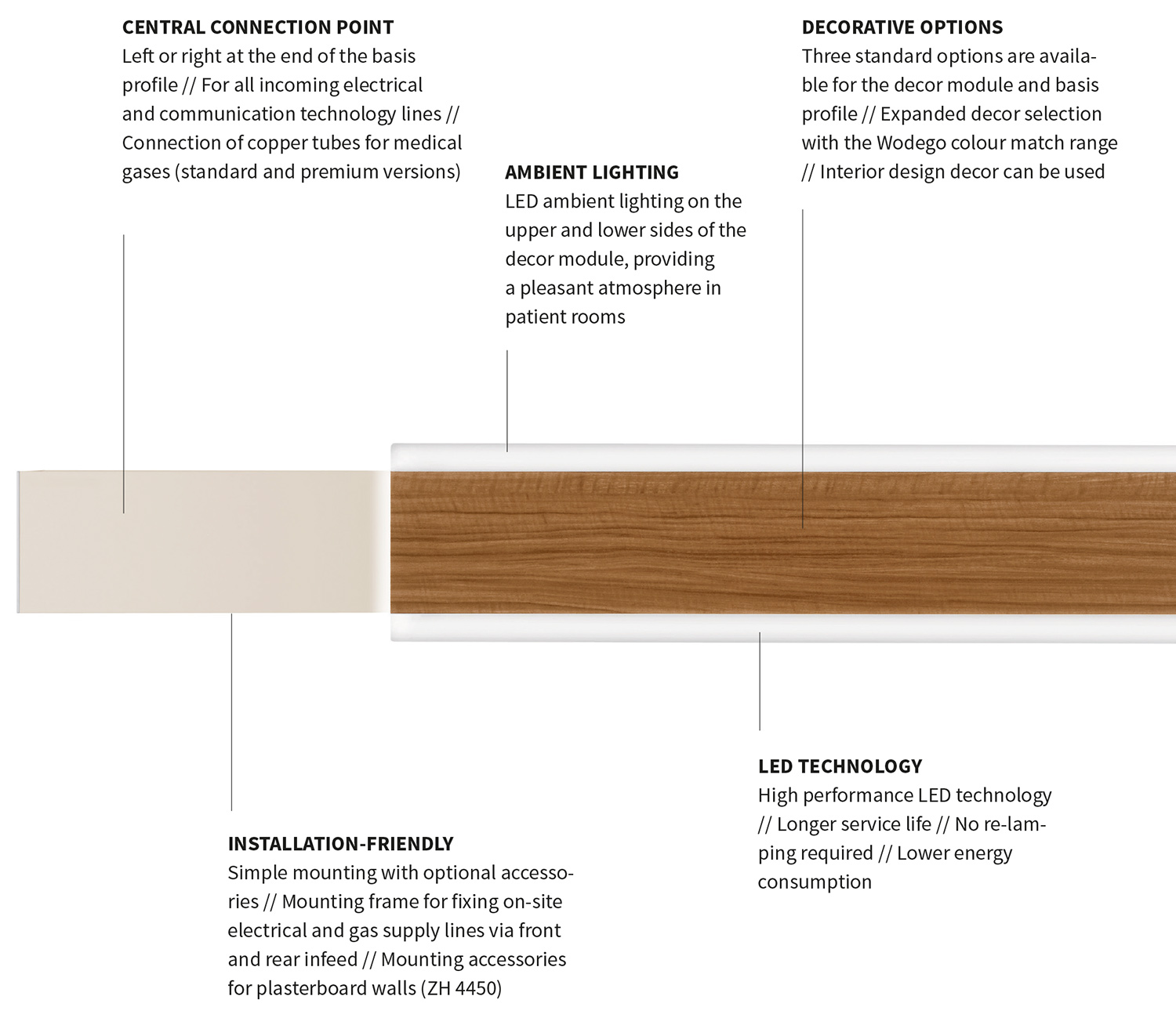

kubion Highlights

Features

kubion Premium-LED Leselichtmodul

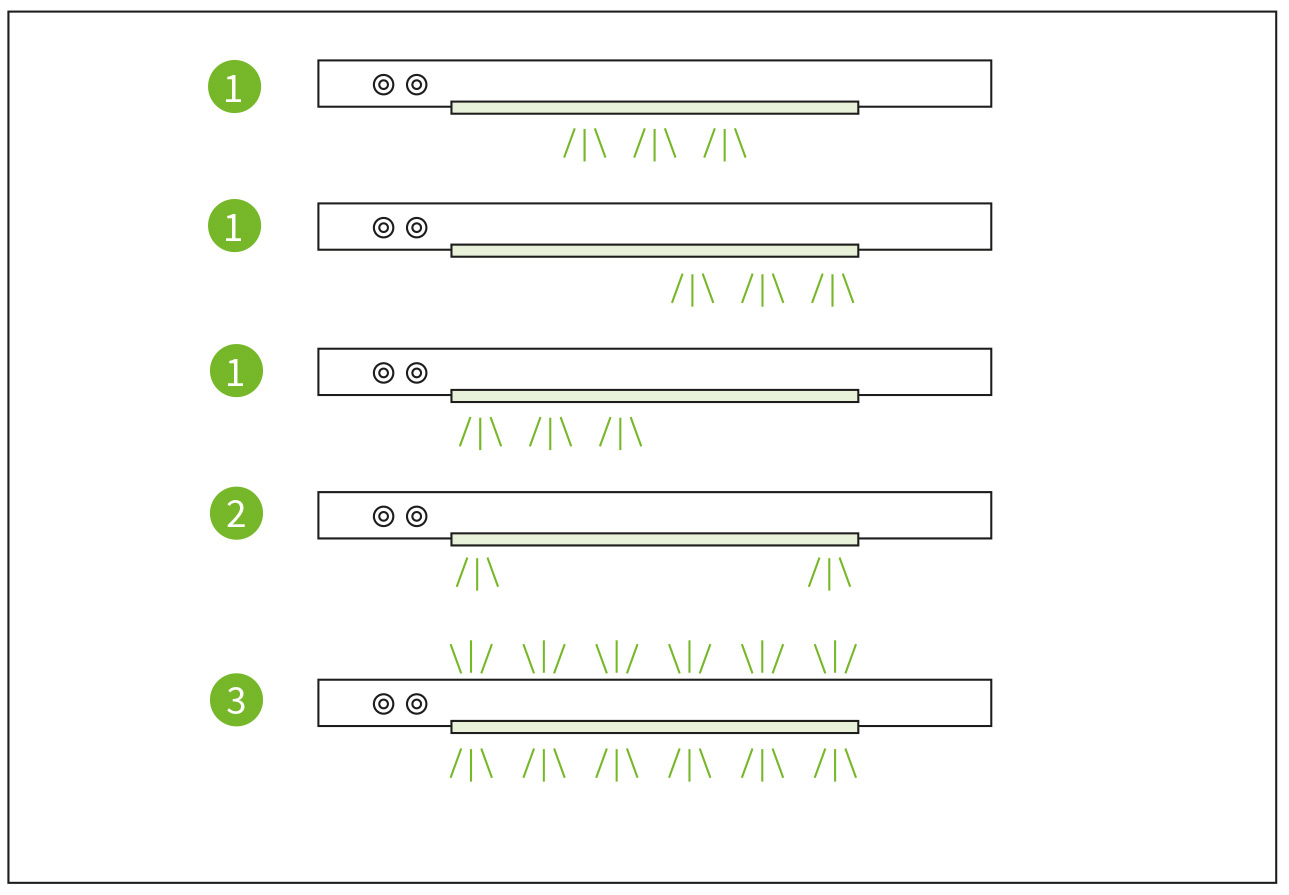

Premium LED reading light module
(1) Reading light for variable positioning of the bed and bedside table // Electronically adjustable, adaptable to the bed position
(2) Integrated orientation lighting
(3) Integrated push button to activate examination light

kubion verschiebbares Dekorelement

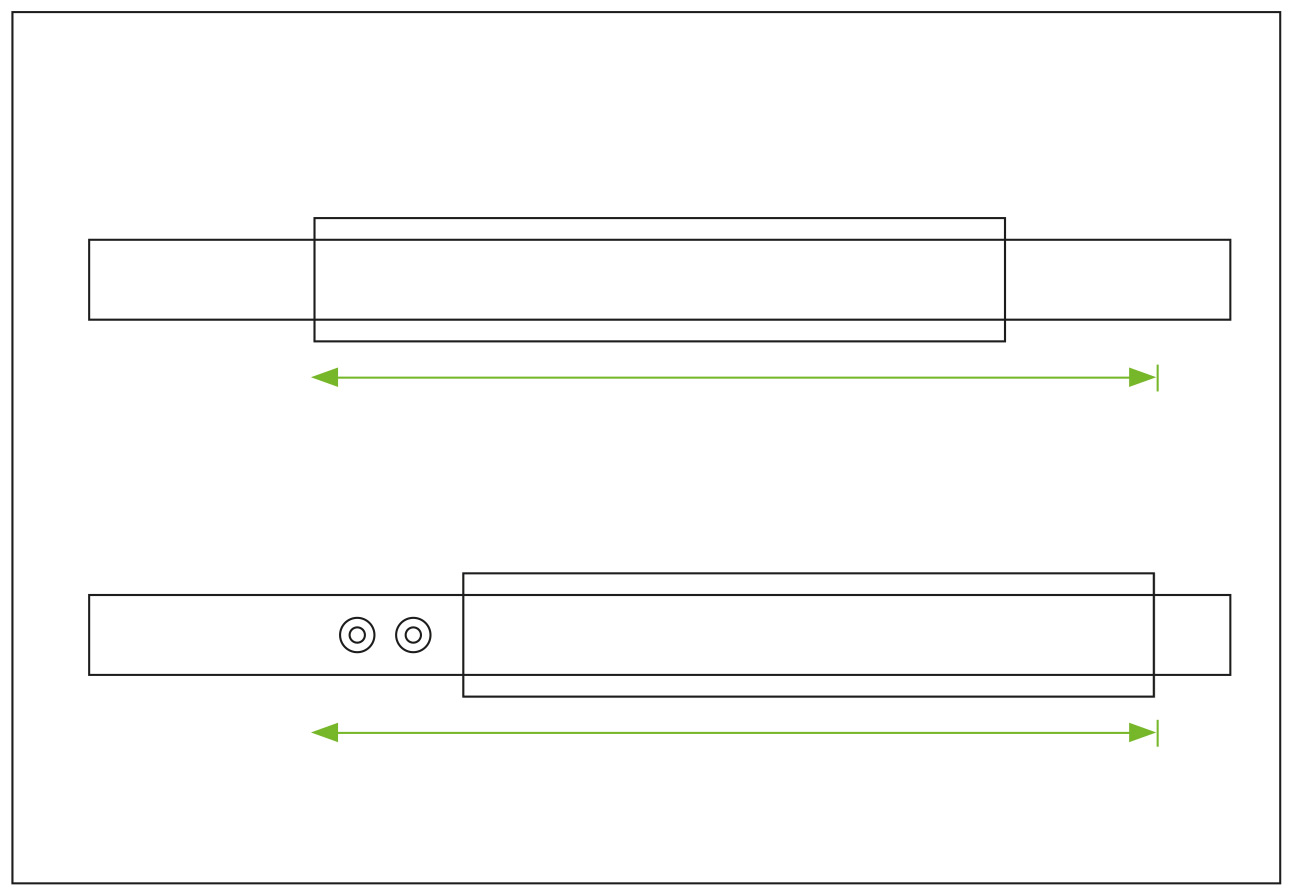

Slidable decor module
Cosy atmosphere by covering a maximum of two gas outlets with the slidable decor module

kubion aufrüstbar bis zur intermediären Pflege

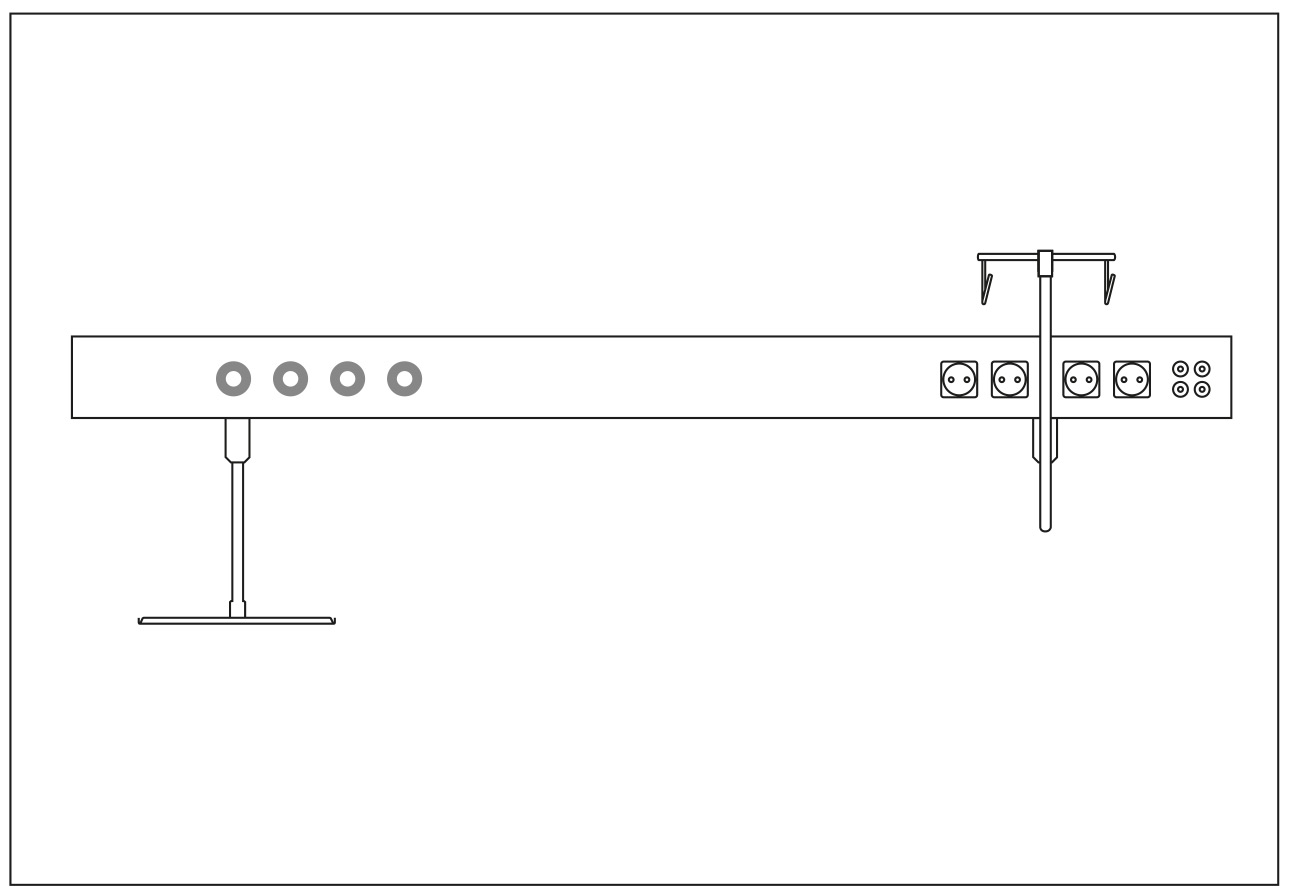

Can be upgraded to intermediate care
Installation of socket outlets and communication components into the front profile // Optional accessories e.g. infusion bottle holder and medical rail

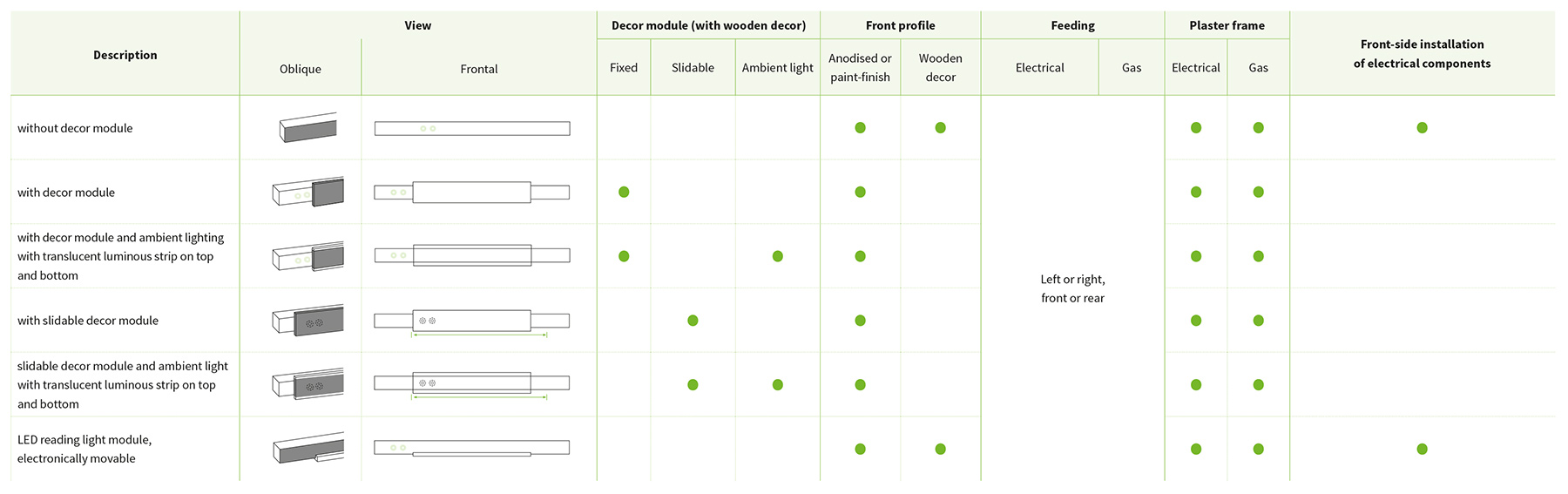

Product versions

kubion Produkt versions

Accessories

kubion Accessories 1

kubion Accessories 2

Decors

kubion decors

Assembly, cleaning, maintenance and repair

Assembly

The medical supply units and single-bed lighting fixtures can be installed and mounted on solid or plasterboard construction walls. Customer provided substructure is required for plasterboard walls. Project-specific substructures are used for ceiling-mounted supply units.

Cleaning

Our products can be cleaned with conventional cleaning agents and disinfected with alcohol-free disinfectants.

Surfaces are protected by high-quality electrostatic powder coating. Non-coated parts are made of anodized aluminium or chrome-nickel steel. All plastic parts are resistant to cleaning agents and disinfectants.

Maintenance and repair

The system must be maintained for the first time after 5 years and then after every 2 years. A contractual service agreement can be concluded for the maintenance work if required. More information can be found in the respective operating instructions.

Accessories

Our comprehensive range of accessories means you can set up your work area exactly as you want it. Consult our Accessories Catalogue to find out about the wide range of options available to you.
